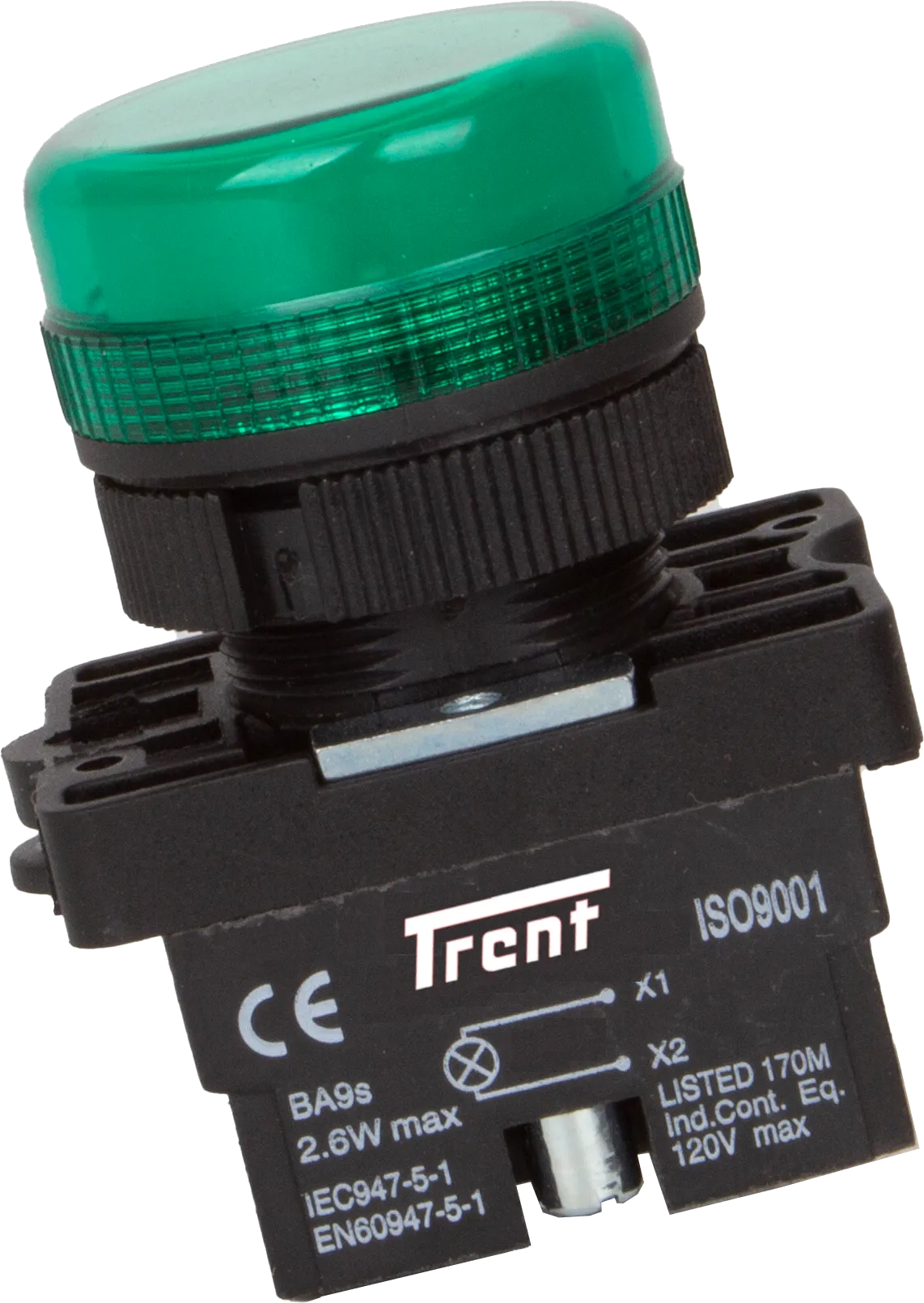

TRI-22-G400, 22mm LED Indicator GREEN 400VAC, Plastic, IP65, IEC60947-5-1

LED indicator Series will activate while the contacts are connected to the rated voltage. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation and visual Indication by the user.

Features :

400VAC or 24VAC/DC (400VAC Special Orders)
LED Illumination

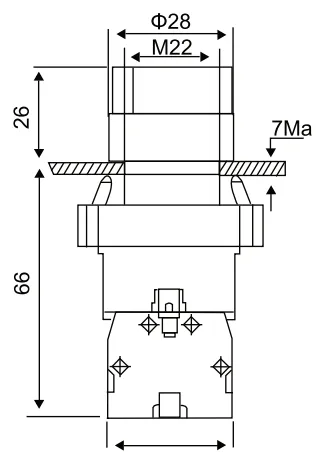

Ø 22.5mm Cutout
Long Life
Replacement Beads Available

Standards :

IP65
IEC60947-5-1
CE

Specification

TRENT Part Number	TRI-22-G400
Functions	LED Indicator Only
Nominal Voltage	230VAC @ 50/60Hz
Impulse Voltage Wear Resistance	6kV
Illumination Type	Green LED
Short Circuit Protection (Fuse)	Recommend 10A gG Fuse
Mechanical Compression Force at Closing	20N
Mechanical Compression Force at Closing	8N
Humidity	35-85%
Approvals	CE
Standards	IP65, IEC60947-5-1
Weight
Enclosure Material	UL94V0
Factory Pack Qty	1
