Product Details
＋

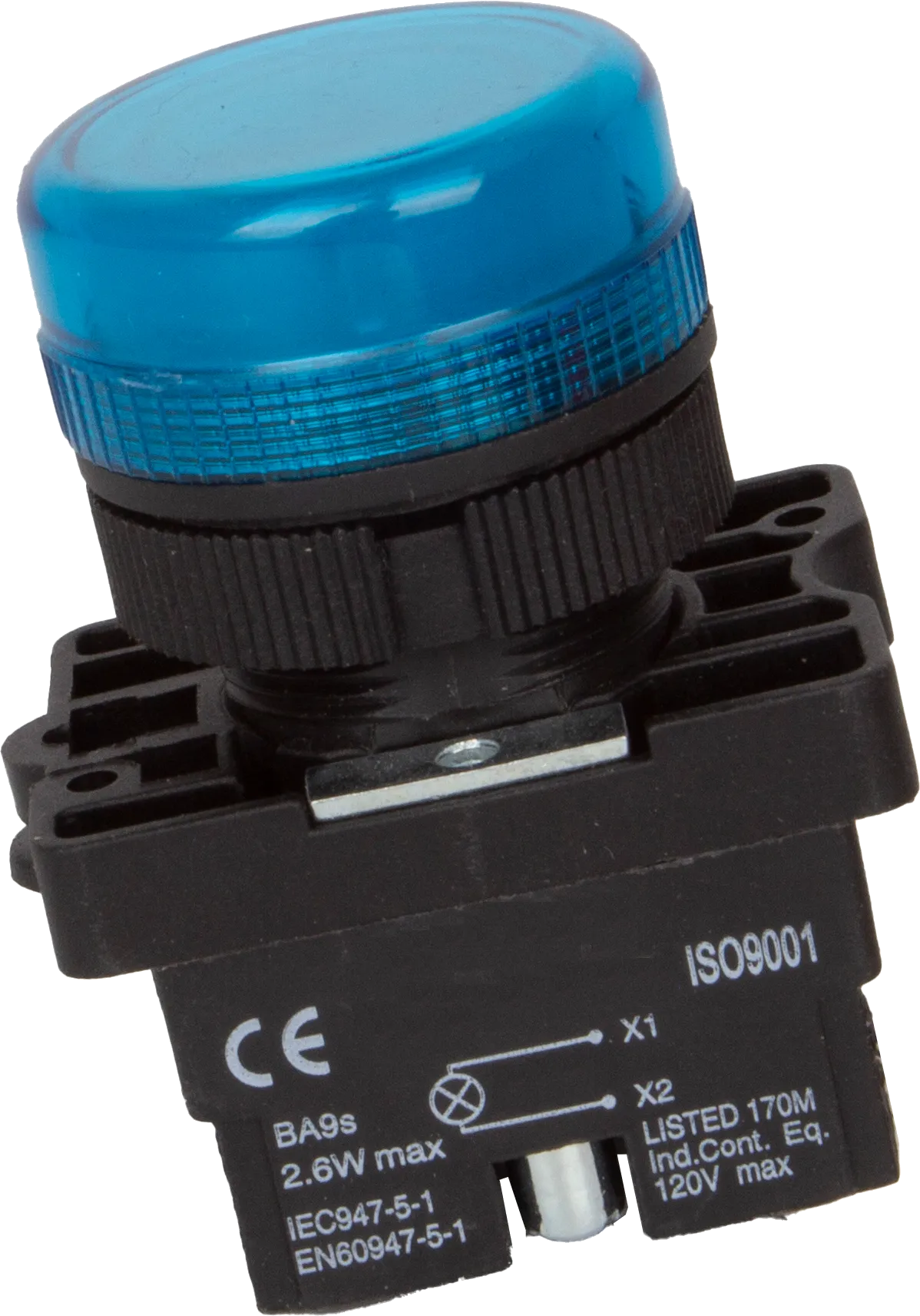

TRI-22-B400, 22mm LED Indicator BLUE 400VAC, Plastic, IP65, IEC60947-5-1
LED indicator Series will activate while the contacts are connected to the rated voltage. Widely Used for Rugged Industrial Applications Including Critical Machinery requiring safe operation and visual Indication by the user.
Features :
- 400VAC or 24VAC/DC (400VAC Special Orders)
- LED Illumination
-

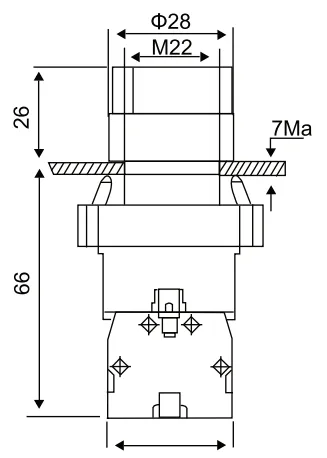

Ø 22.5mm Cutout
- Long Life
- Replacement Beads Available
Standards :
- IP65
- IEC60947-5-1
- CE
Specification
| TRENT Part Number | TRI-22-B400 |
| Functions | LED Indicator Only |
| Nominal Voltage | 230VAC @ 50/60Hz |
| Impulse Voltage Wear Resistance | 6kV |
| Illumination Type | Blue LED |
| Short Circuit Protection (Fuse) | Recommend 10A gG Fuse |
| Mechanical Compression Force at Closing | 20N |
| Mechanical Compression Force at Closing | 8N |
| Humidity | 35-85% |
| Approvals | CE |
| Standards | IP65, IEC60947-5-1 |
| Weight | |
| Enclosure Material | UL94V0 |
| Factory Pack Qty | 1 |
| TRENT(Fastron) Head Office | Australia |
