OMAX Digital Cameras provide a range of solutions for schools, laboratories, and industry. Designed specifically for microscopy applications, our cameras provide performance and reliability, with a software suite tailored for professional use.

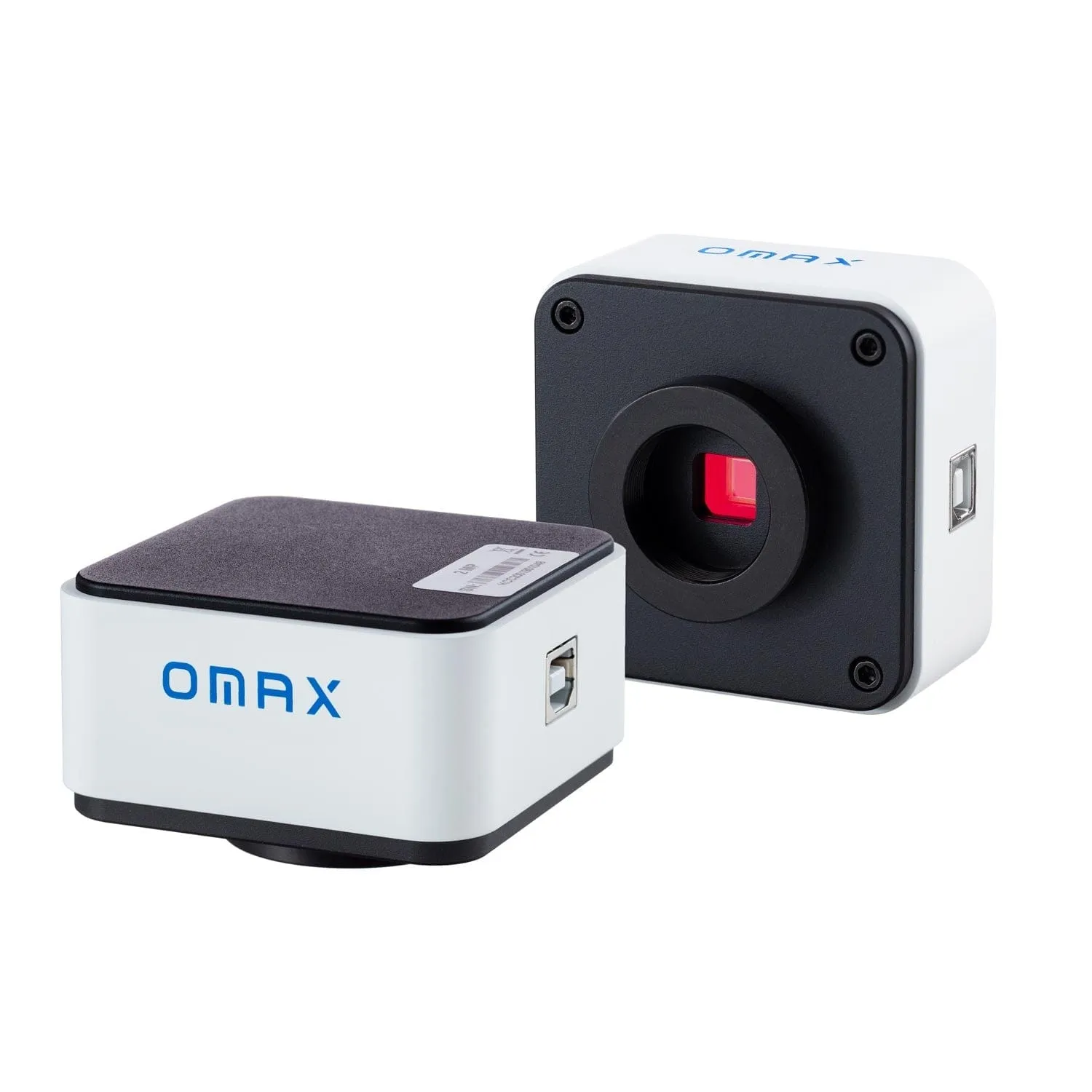

The A55020U provides an economical solution for digital imaging with your microscope. You can view a live stream on your PC, and snap 2-megapixel photos and capture 1080p videos.
The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images.
Sensor
| Sensor | Sensor Type | Sensor Format | Pixels |
|---|---|---|---|
| Sony | CMOS | 1/2.9" | 2M (1920x1080) |
| Pixel Size | Shutter | Sensitivity ?
|
ADC |
| 2.8µm x 2.8µm | Rolling Shutter | 510mV @1/30s (f5.6) | 12 bit |
Camera
| Frame Rate(s) | Connectivity | Lens-mount |
|---|---|---|
| 30fps@1920x1080 | USB 2.0 | C-mount |
| Compensating Lens | Exposure Time | Compatibility |
| 0.37X (not included) | 1ms to 2000ms | Windows (64 bit) 7/8/10 |
Software
| OS Requirements | Windows (64 bit) 7/8/10 | |||||||
|---|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core i5 or better(Quad or more Core), 8GB RAM, USB3.0 port for maximum speed | |||||||
| Features |
|
