OMAX Digital Cameras provide a range of solutions for schools, laboratories, and industry. Designed specifically for microscopy applications, our cameras provide performance and reliability, with a software suite tailored for professional use.

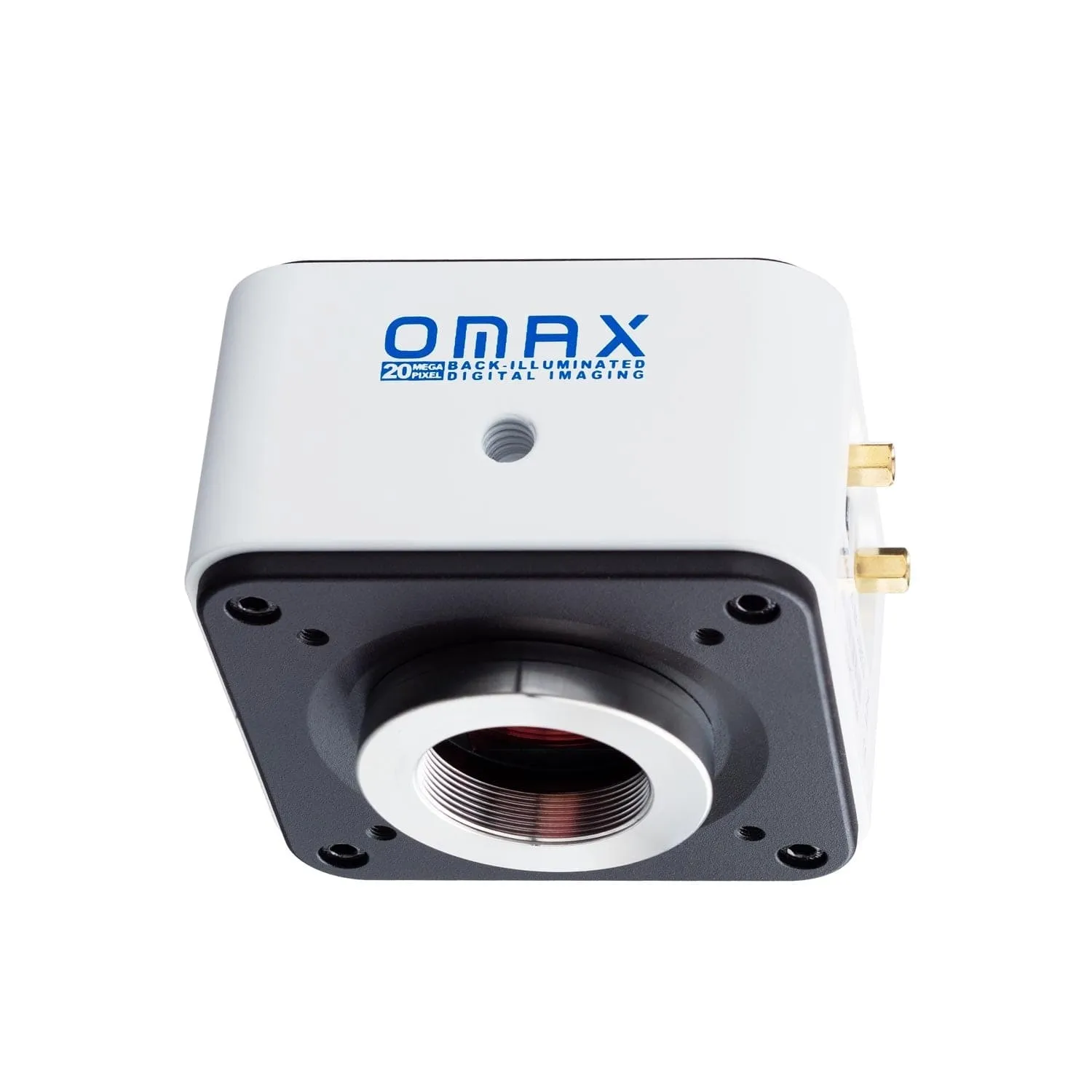

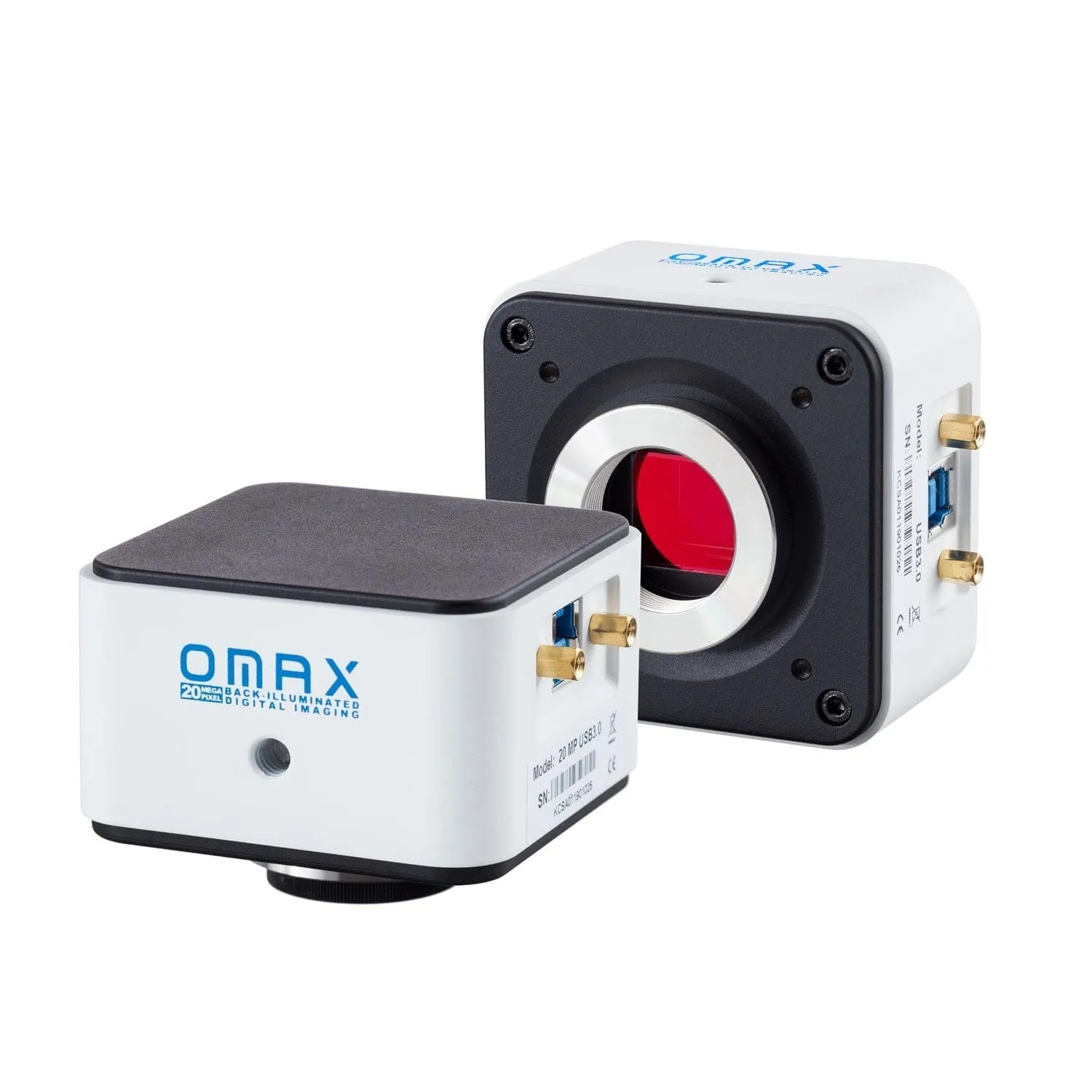

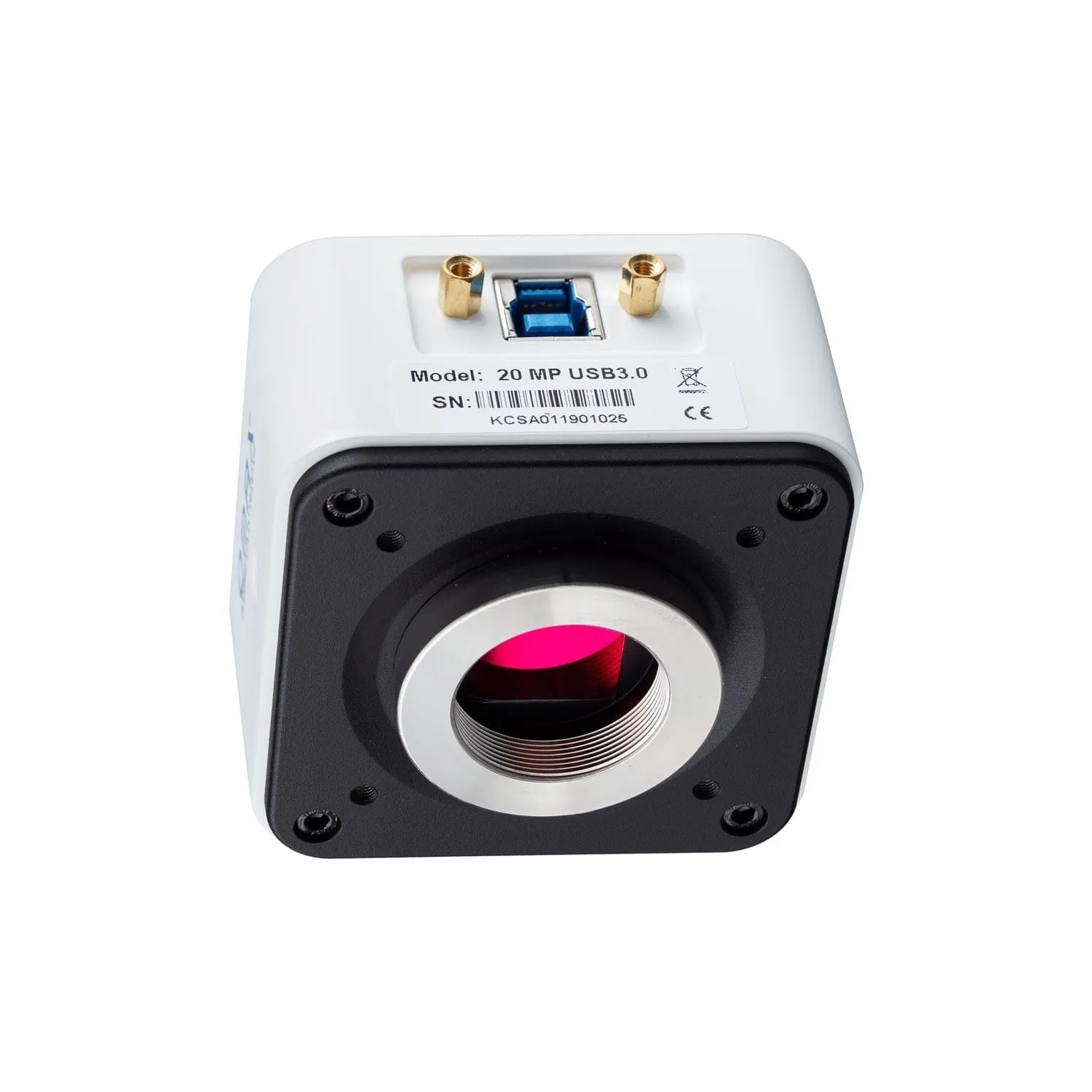

The A55BI200U3 uses a high-speed 20MP back-illuminated CMOS sensor for high resolution with high quantum-efficiency. The 1" format sensor provides a large field-of-view with improved light-gathering efficiency.
With a large 1-inch sensor, this camera is best-suited for microscopes with a direct C-mount interface. Smaller photo-ports, such as 23mm ports, will typically cause vignetting, unless used with a magnifying relay lens.
The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images.
Sensor
| Sensor | Sensor Type | Sensor Size | Pixels |
|---|---|---|---|
| Sony IMX183CQJ Exmor | Back-illuminated CMOS | 1" class (13.3mm x 8.9mm, 15.8mm diagonal) | 20M |
| Pixel Size | Transfer Method | Sensitivity ?
|
Saturation Signal |
| 2.4µm x 2.4µm | Rolling Shutter | 461mV @ 1/30s | 942mV |
Camera
| Max Frame Rate(s) | Connectivity | Lens-mount |
|---|---|---|
| 15fps@5440x3648 53fps@2736x1824 67fps@1824x1216 |
USB 3.0 | C-mount |
| Compensating Lens | Exposure Time | Compatibility |
| -- | 0.13ms-15s | Windows (64 bit) 7/8/10 |
Software
| OS Requirements | Windows (64 bit) 7/8/10 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core i5 or better(Quad or more Core), 8GB RAM, USB3.0 port for maximum speed | ||||||||
| Features |
|
