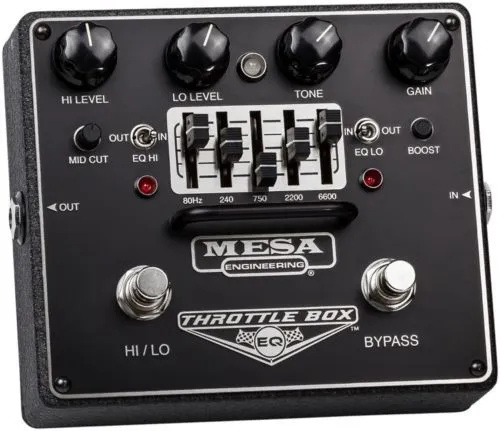

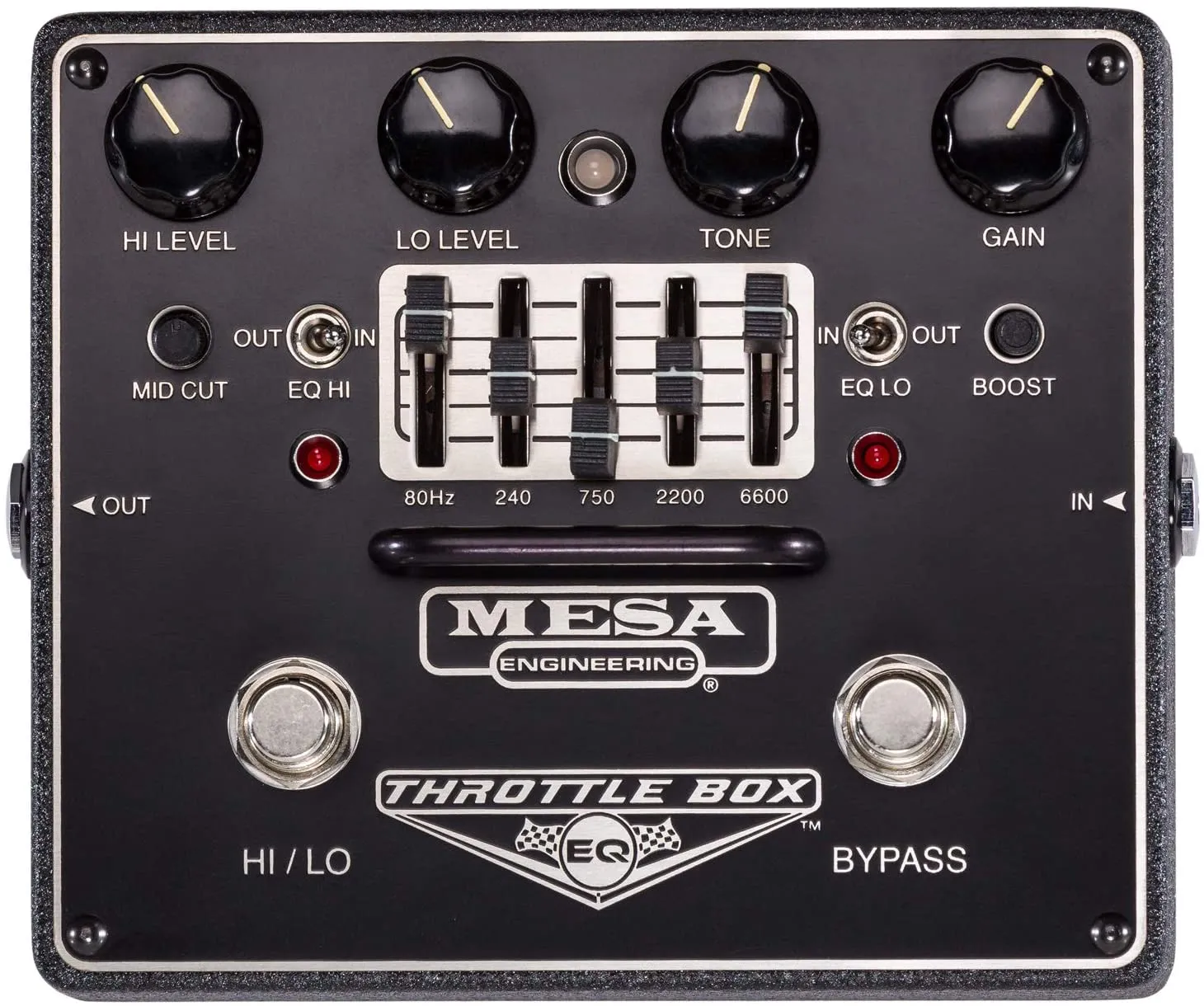

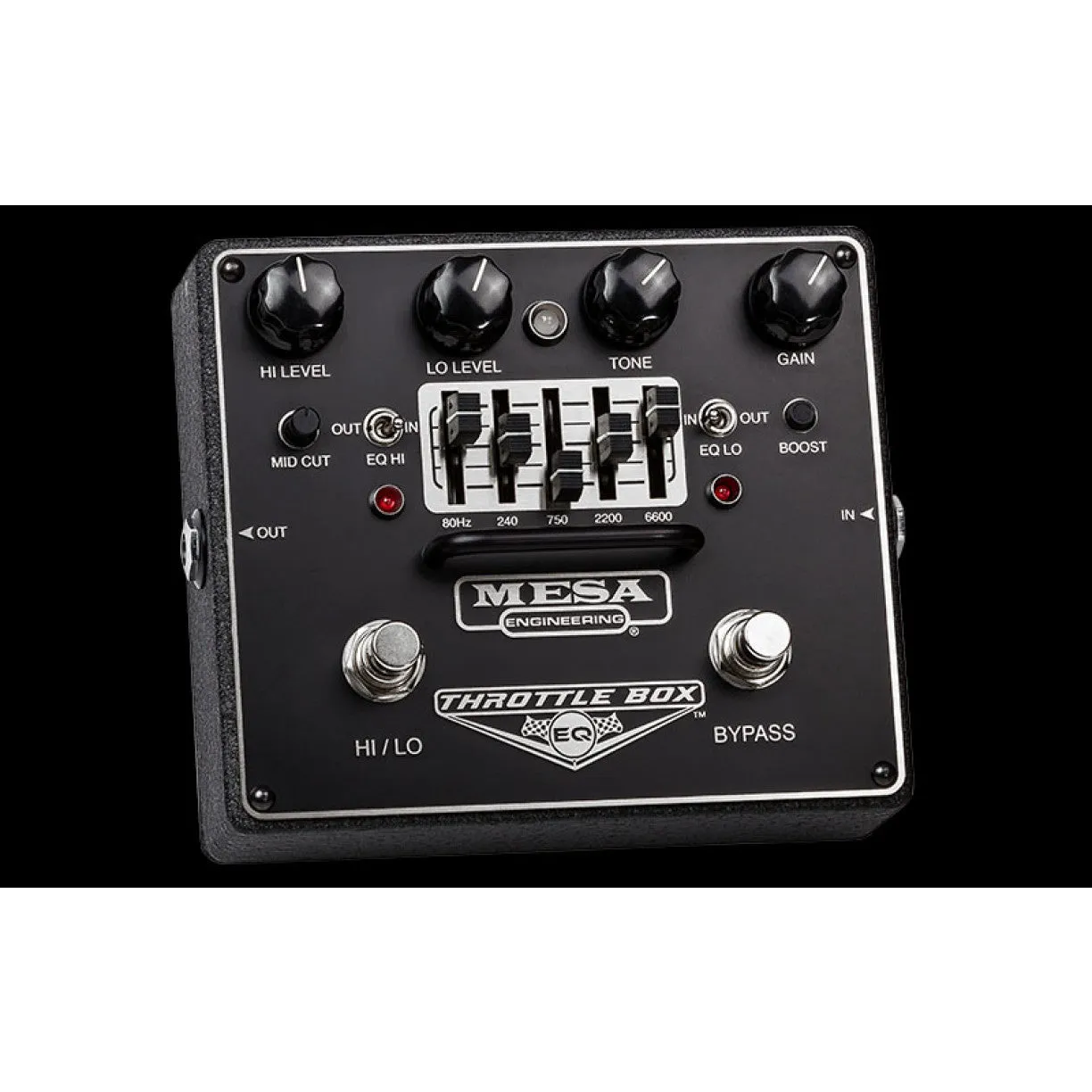

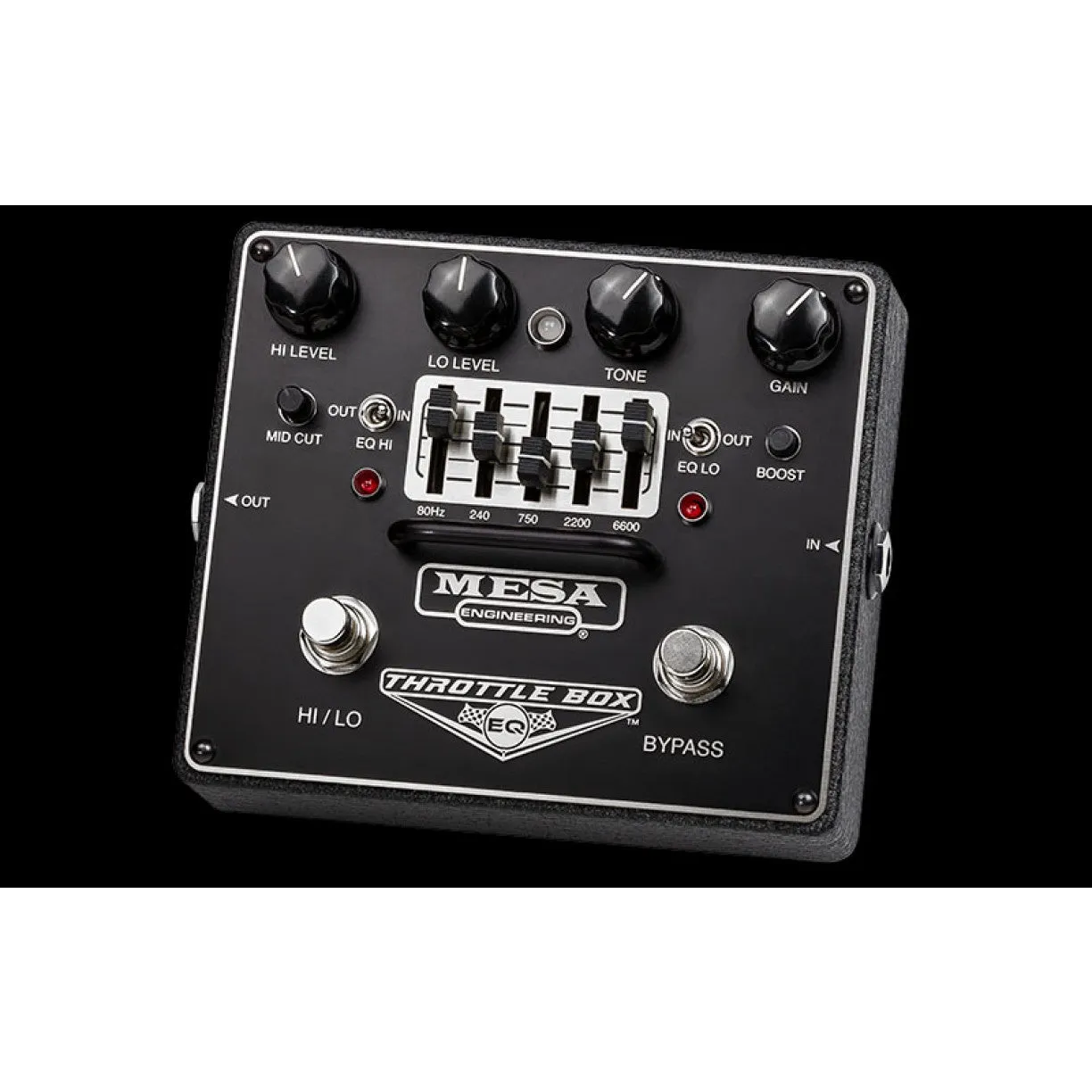

The THROTTLE BOX EQ„¢ combines the enhanced tone shaping power of our popular Boogie® Five-Band Graphic Equalizer with footswitchable HI/LO performance Modes and easy €œTop Panel€� access to the previously internal BOOST feature of the original THROTTLE BOX„¢.
With the worldwide success of the THROTTLE BOX„¢ overdrive, we saw potential for an even more powerful version that included our classic Five-Band Graphic Equalizer. With the added shaping power the on-board Five Band EQ creates the THROTTLE BOX EQ can go anywhere you want to take it stylistically. The middle range of the GAIN control delivers tight, stinging overdrive that€“depending on whether you choose LO or HI GAIN Modes€“can cover everything from Blues to Modern Metal with plenty of attitude and an urgent percussive nature. Cranking things up into the upper one-third of the GAIN control in HI unleashes a hot-rod that€™s blistering with searing top-end harmonics.
PRODUCT FEATURES:
- Designed and Handcrafted in Petaluma, California, USA
- True Bypass On/Off Footswitch bypasses all circuitry when off to ensure no tonal loss
- HI/LO Footswitch provides instant access between HI & LO (Gain) Modes for greater musical versatility
- Gain Control allows you to dial in the perfect amount of classic to modern high-gain
- Tone Control balances the amount of high frequencies
- Mid-Cut Control provides powerful mid-scoop for modern high-gain styles
- Boost Switch provides an enhanced EQ-voicing with more and lower bottom end, sweet tailored mids and crisp, shimmering highs
- 5-Band Graphic EQ with LED Indicators provide Auto-Assignability to either Mode (HI or LO) via Independent On/Off Switches and Mesa€™s legendary tone-shaping power with /- 12dB of boost or cut at 80Hz, 240Hz, 750Hz, 2.2Khz and 6.6Khz
- Independent HI & LO Mode Master Level Controls provide exceptional performance versatility and a variable range of signal boost up to 20dB for each Mode
- On/Off Status LED with Dual Color LED€™s to indicate the active Mode (LO = Yellow / HI = Red)

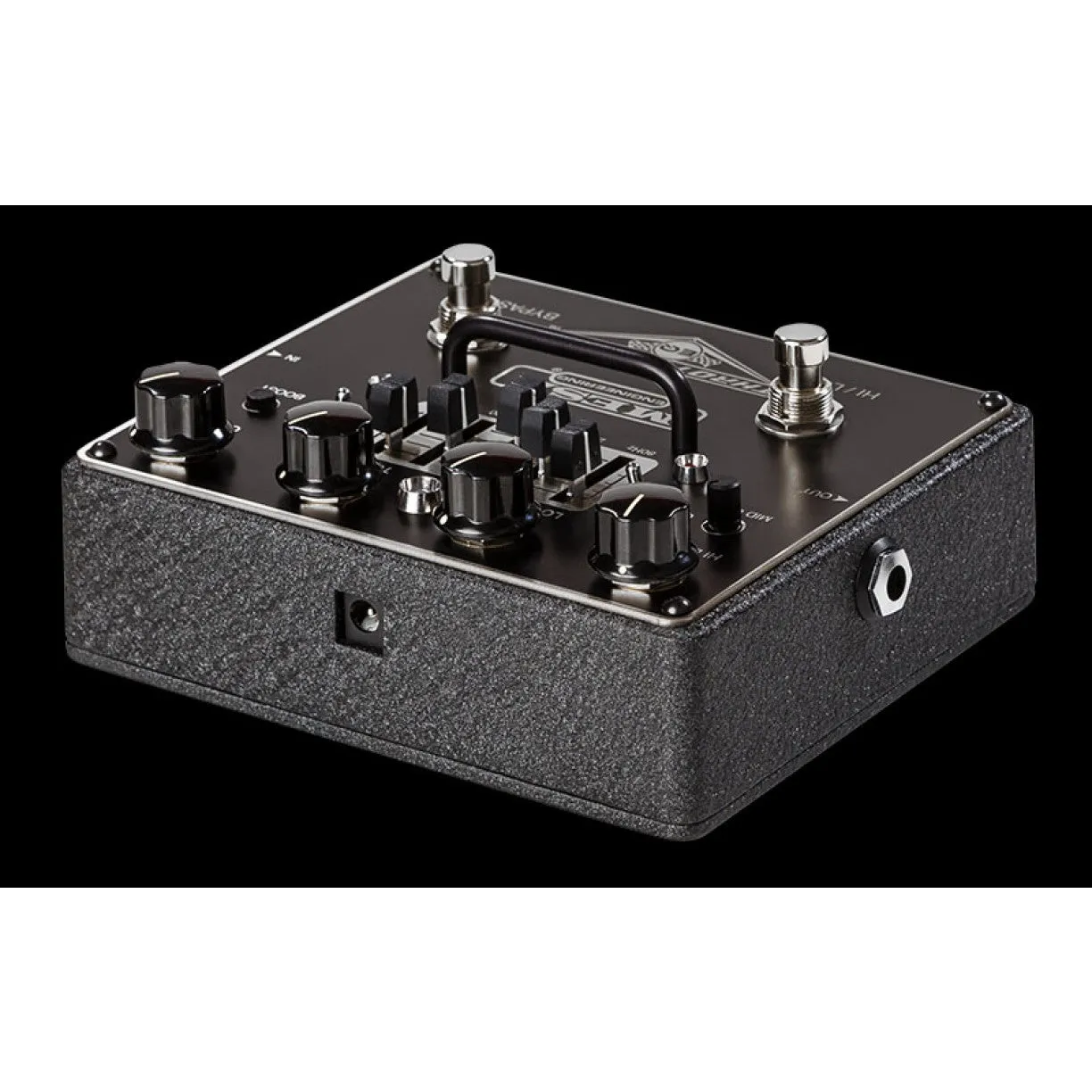

- 9V Battery Powered or Externally Powered (optional) via External Power Supply Input Jack
- Input & Output Jacks (Nominal Input -20dB)
SPECIFICATIONS
- Dimensions (W/D/H): 5.78" x 4.76" x 2.30" (146.8mm x 121mm x 58.4mm)
- Weight: 1.7 lbs. (817g) with (one) battery, 1.6 lbs. (726g) without battery
- True Bypass Switching
- Battery Type: 9VDC (One or Two €“ Two for extended battery-powered use)
- Power Consumption (Current Draw): 9VDC/45mA
- External Power Supply (Not Included): WARNING!!! To avoid immediate damage and voiding the warranty, the External Power Supply MUST be 9VDC with a NEGATIVE CENTER plug polarity and a jack plug size of 2.1mm x 5.5mm.
- Input Impedance: 1M Ohm (500k Ohm minimum)
- Output Impedance: 10k Ohm
