The CSA2120 2-Channel Installed Sound Power Amplifier from JBL features 120 watts of output per channel at 4 or 8 ohms and is designed for installed sound applications. Each of its two input channels has dual summing RCA inputs and a 3-pin detachable Euroblock input. Both channels also feature a selectable limiter and high-pass filter at 70Hz. The CSA2120 has a 4-pin Euroblock output connector for powering dual loudspeakers. The auto-standby mode disables the amplifier pulse width modulation generator when there is no signal detected.

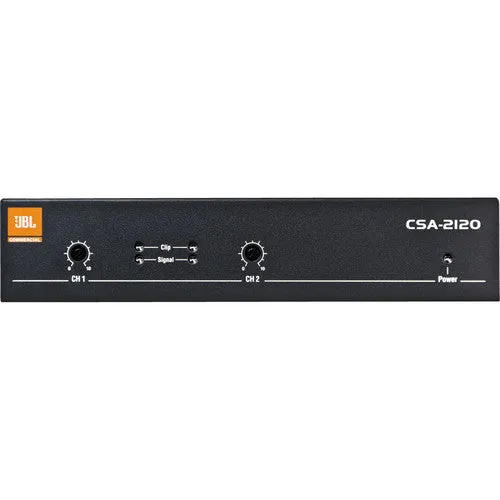

The CSA2120 has both over-heat and low-voltage protection and can be rackmounted with the included rackmount kit. It has front-panel channel volume controls as well as clip, signal, and power LED indicators. The unit is powered by a switch-mode universal power supply.
Plenum Rated
The CSA2120 is Plenum Rated UL2034 for fire-retardant operation
| Audio |
| Audio Channels: |
2 |
| RMS Output Power: |
240 W |
| Basic |
| Audio Channels: |
2 |
| Brand Name: |
JBL Commercial |
| Maximum Frequency Response: |
1 kHz |
| Number of Analog Audio Inputs: |
4 |
| Product Family: |
CS |
| Product Type: |
Amplifier |
| RMS Output Power: |
240 W |
| General Information |
| Brand Name: |
JBL Commercial |
| Manufacturer: |
Harman International Industries, Inc |
| Manufacturer Part Number: |
NCSA2120R-U-US |
| Manufacturer Website Address: |
|
| Product Model: |
CSA2120 |
| Product Name: |
CSA2120 Amplifier |
| Product Series: |
CS |
| Product Type: |
Amplifier |
| Interfaces/Ports |
| Number of Analog Audio Inputs: |
4 |
| Miscellaneous |
| Country of Origin: |
China |
| Environmental Certification: |
WEEE |
| Environmentally Friendly: |
Yes |
| Package Contents: |
- CSA2120 Amplifier
- Rack mounting kit
|
| Physical Characteristics |
| Depth: |
7" |
| Height: |
1.7" |
| Weight (Approximate): |
2.90 lb |
| Width: |
8.2" |
| Power Description |
| Operating Power Consumption: |
50 W |
| Technical Information |
| Maximum Frequency Response: |
1 kHz |
