Infrared Temperature Sensor GY-906 MLX90614

• 10k Pull up resistors for the I2C interface with optional solder jumpers.
• Factory Calibrated at -40 to 125°C for sensor temperature.
• Factory Calibrated at -70 to 380°C for object temperature.
• High accuracy of 0.5°C over the wide temperature range ( 50°C for both)
• Measurement resolution of 0.02°C.
• Single and Dual zone versions
• SMBus compatible digital interface
• Customizable PWM output for continuous readings

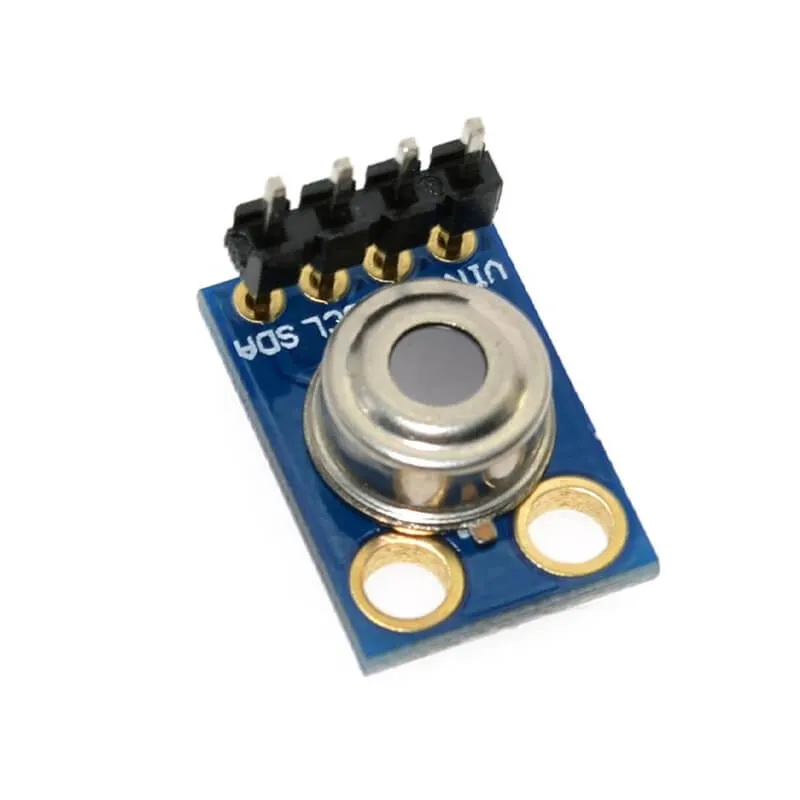

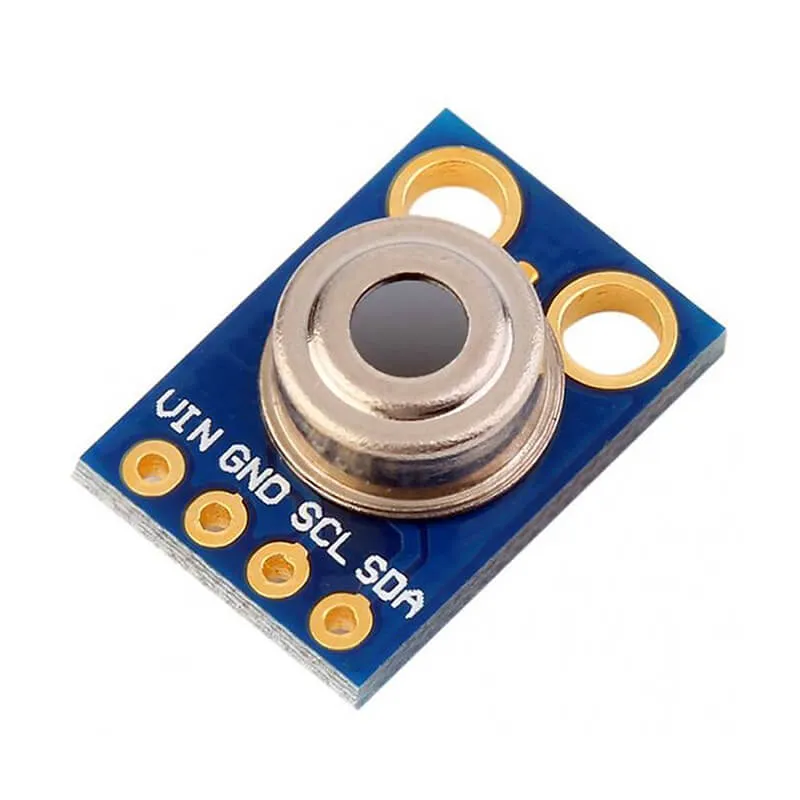

This GY-906 MLX90614 is an infrared thermometer for high precision non-contact temperature measurements. It can be easily used with any microcontroller that can communicate with I2C Interface module.

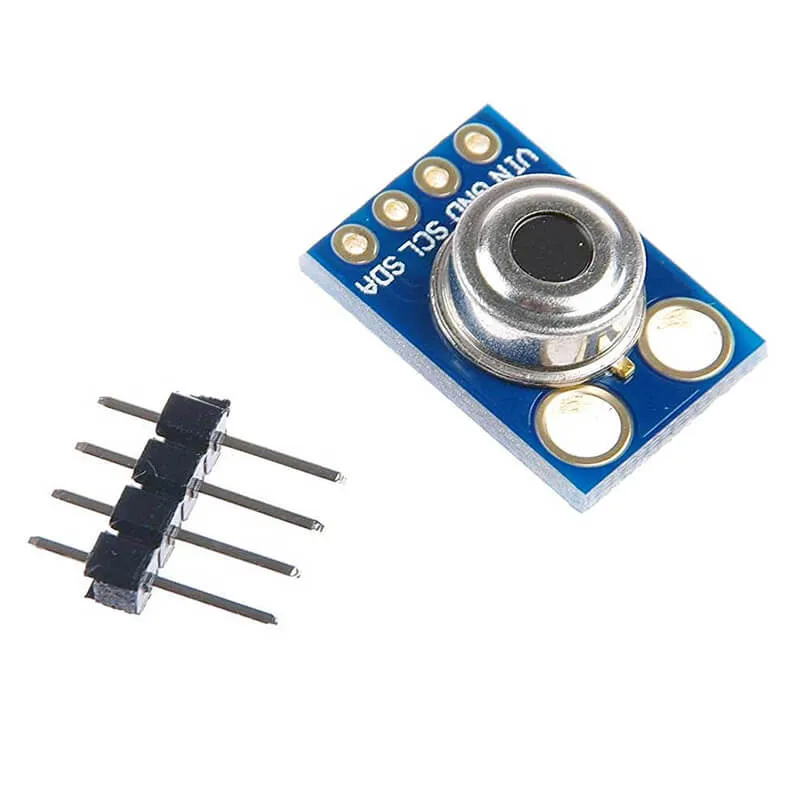

This sensor comes with a breakout board with all of the components needed for operation and two types of pins. It has various applications such as Automotive blind angle detection, Multiple zone temperature control – up to 127sensors, Thermal relay/alert, Movement detection, Livestock monitoring, Body temperature measurement
