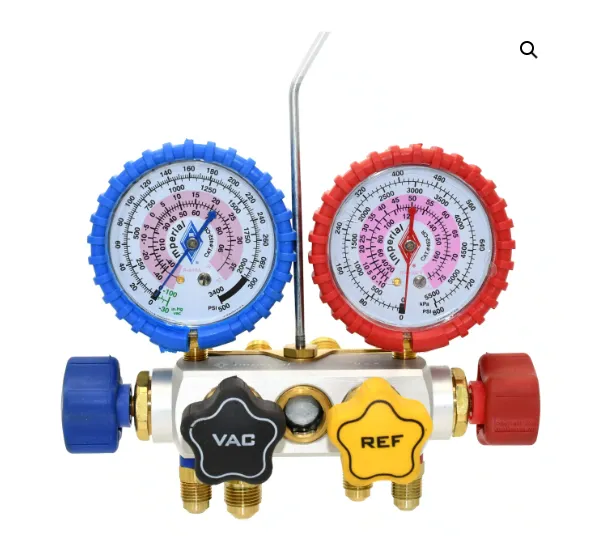

The 840CKPSC is a 4-Valve premium manifold with 68mm gauges and sight glass.

4 Times Faster Evacuation – 3/8” vacuum port and oversize internal passages evacuate systems four times faster than ordinary manifolds. The 3/8” port has a greater area than combined inlets of high and low sidelines.

FEATURES:

• 4-Valve Efficiency – Vacuum, low side, high side, and refrigerant lines are individually connected and controlled. No need to switch charging lines.
• 4 Times Faster Evacuation – 3/8” vacuum port and oversize internal passages evacuate systems four times faster than ordinary manifolds.
• 3/8” port has a greater area than combined inlets of high and low sidelines.
• 5/16″ fittings plus 3/8″ SAE Vacuum Port.
• Four Valve Silver Anodised Manifold with sight glass [R410a] Celsius, KPA and PSI.
• Unique Deep Draw Vacuum Valve Design – Proven diaphragm-type, soft-seat valves require only fingertip pressure to close completely. One turn to full open/close. Superior for deep vacuum service.
• Precision Gauges & Protective Boots – Unique design with easy to read colour-coded scales provides superior resistance to shock, vibration and pulsation for superior performance and extended gauge life.
• PolarShield® Hi-Performance Hoses – 800 PSI working pressure, 4,000 PSI burst pressure.
• Ergonomic Handles – Durable, soft-touch non-slip surface, even with oily fingers.
• Swivel Hanger.

INCLUDES:

1 x 840CKPSC 4-Valve Manifold and Limited Lifetime Warranty.

SPECIFICATIONS:

• Hoses: None
• 5/16″ fittings plus 3/8″ SAE Vac. Port.
• Gauges: R410A, KPa, PSI, Fº & Cº
• Bust Pressure: 4000 PSI
• Country of origin: USA.
