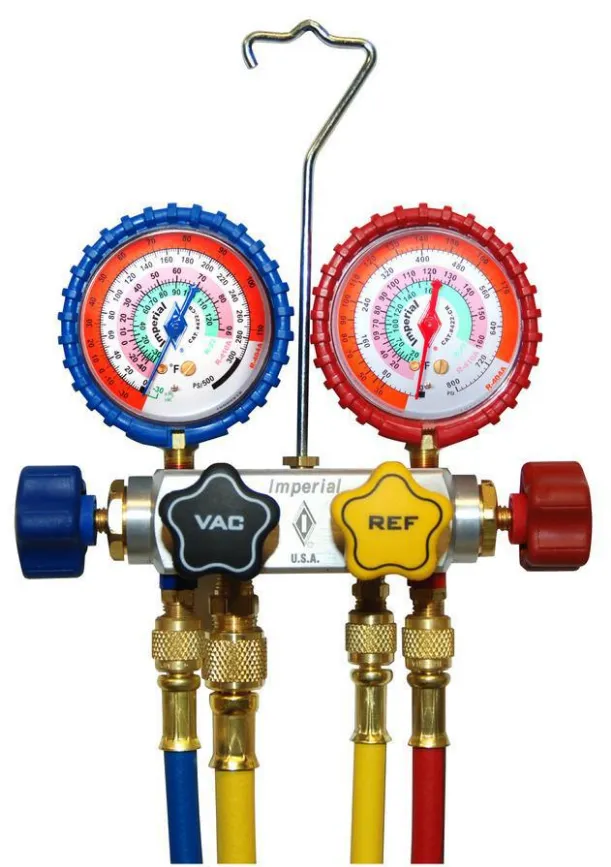

This 4-valve model offers a complete connection for your repairs & diagnostics. Use for all Refrigeration & Air Conditioning Services.

Includes manifolds and 60" long hoses with 3 x 1/4" SAE and 1 x 3/8" SAE

Specifications

• 4-Valve Efficiency - Vacuum, low side, high side, and refrigerant lines are individually connected and controlled. No need to switch charging lines.
• 4-Times Faster Evacuation - 3/8” vacuum port and oversize internal passages evacuate systems four times faster than ordinary manifolds. 3/8” port has a greater area than combined inlets of high and low side lines.
• Deep Vacuum Valve Design - Proven diaphragm-type, soft-seat valves require only fingertip pressure to close completely. One turn to fully open/close. Superior for deep vacuum service.
• Precision Gauges & Protective Boots - Unique design with easy-to-read color-coded scales provides superior shock, vibration, and pulsation resistance for superior performance and extended gauge life.
• PolarShield® Hi-Performance Hoses - 800 PSI working pressure, 4,000 PSI burst pressure.
• Ergonomic Handles - Durable, soft-touch non-slip surface, even with oily fingers.
• Swivel Hanger
