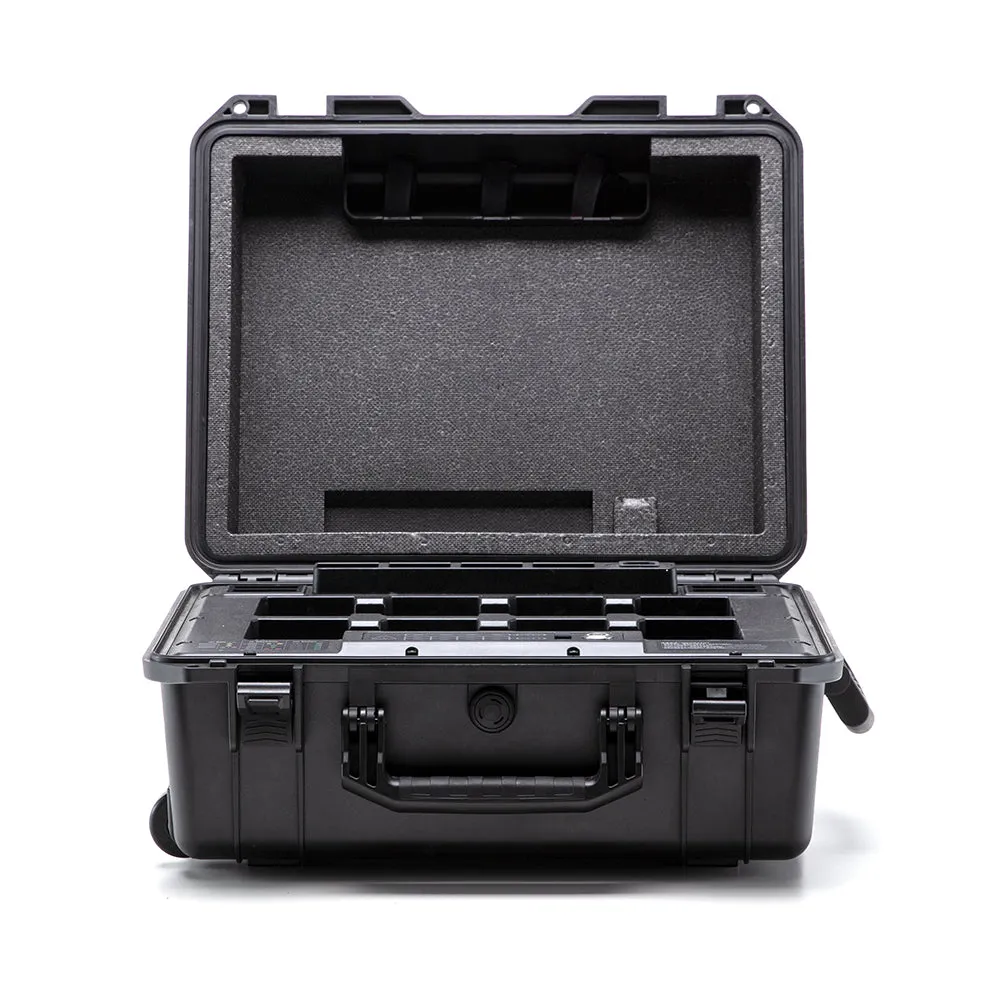

Name: DJI Matrice 300 BS60 Intelligent Battery Station
SKU: 2174160

Product Details ＋

Please Note: The BS60 has now been discontinued and is replaced by the which is compatible with both TB60 and TB65 flight batteries.

The DJI Matrice 300 BS60 Intelligent Battery Station makes charging batteries a breeze with the . The battery station manages up to eight and four . It also comes with built-in wheels that make the Battery Station easy to maneuver from once place to another.

When in charging mode, the BS60 Battery Station is able to charge two TB60 flight batteries and one WB37 remote controller battery at the same time. When batteries are put on the station for charging, the station selects the battery with the highest battery level to be recharged first, it then continues with the batteries with lower levels. Battery charging times with the BS60 Battery Station depend on whether you are using a 110V or 220V power supply, please reference the table below.

In cold temperatures (-20°C to 5°C), the Battery Station will warm up the battery before charging it. Firmware updates on the BS60 Battery Station can be completed from the DJI Pilot app on your , simply by plugging the remote into the station via a USB-C cable and navigating to the HMS (Health Management System).

BS60 Battery Station Charging Times

110V Power Supply	70 minutes to fully charge two TB60 Batteries 40 minutes to charge them from 20% to 90%
220V Power Supply	60 minutes to fully charge two TB60 Batteries 30 minutes to charge them from 20% to 90%

Specs

BS60 Battery Station Specs

Dimensions	19.72 x 15.86 x 9.92 inches (501 x 403 x 252mm)
Net Weight	18.45 lbs (8.37 kg)
Maximum Capacity	(8) TB60 Intelligent Flight Battery (4) WB37 Intelligent Battery
Input	100-120 VAC, 50-60 Hz / 220-240 VAC, 50-60 Hz
Max. Input Power	1070W
Output Power	100-120 V: 750 W 220-240 V: 992 W
Operating Temperature	-4°F to 104°F (-20°C to 40°C)
