Description:

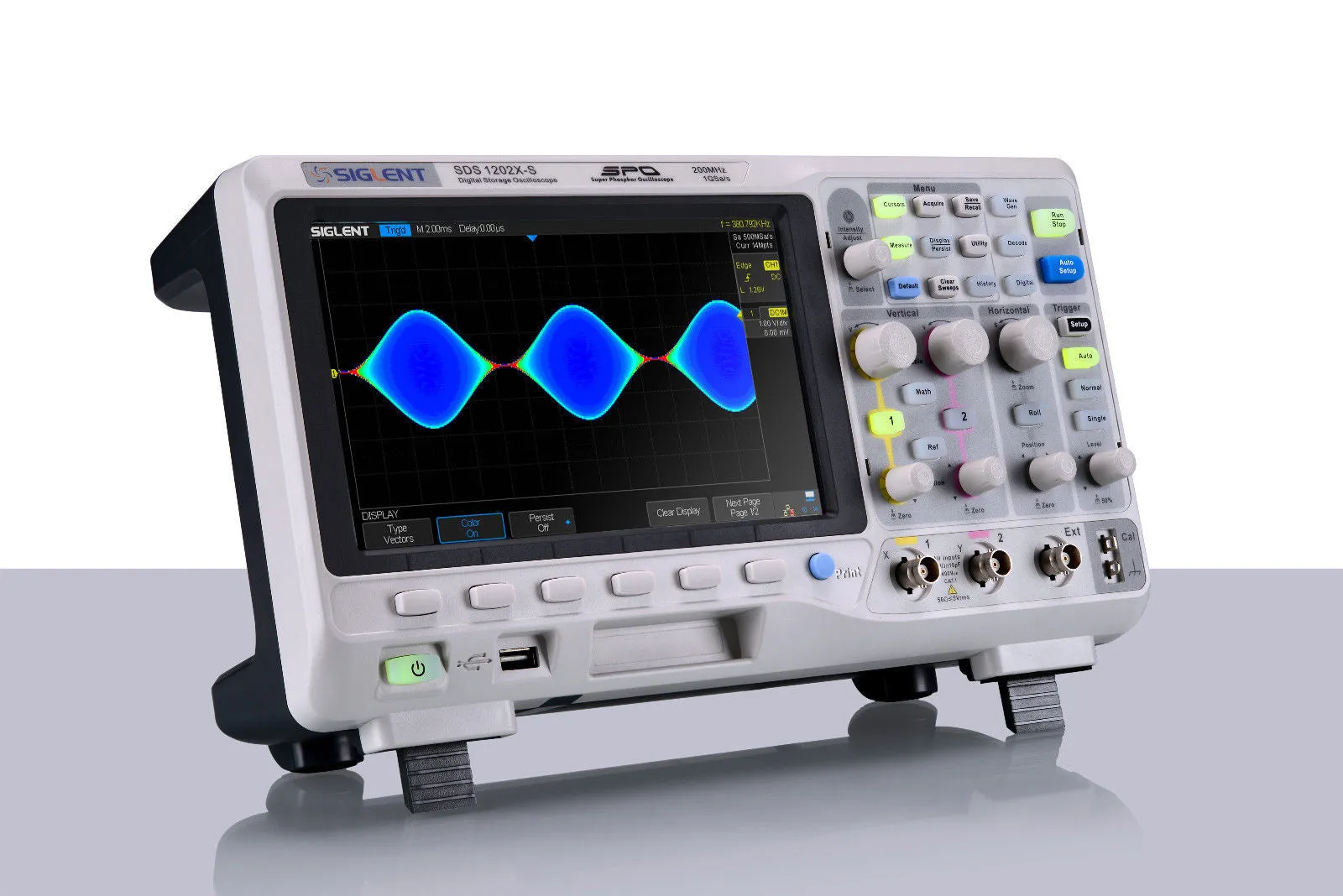

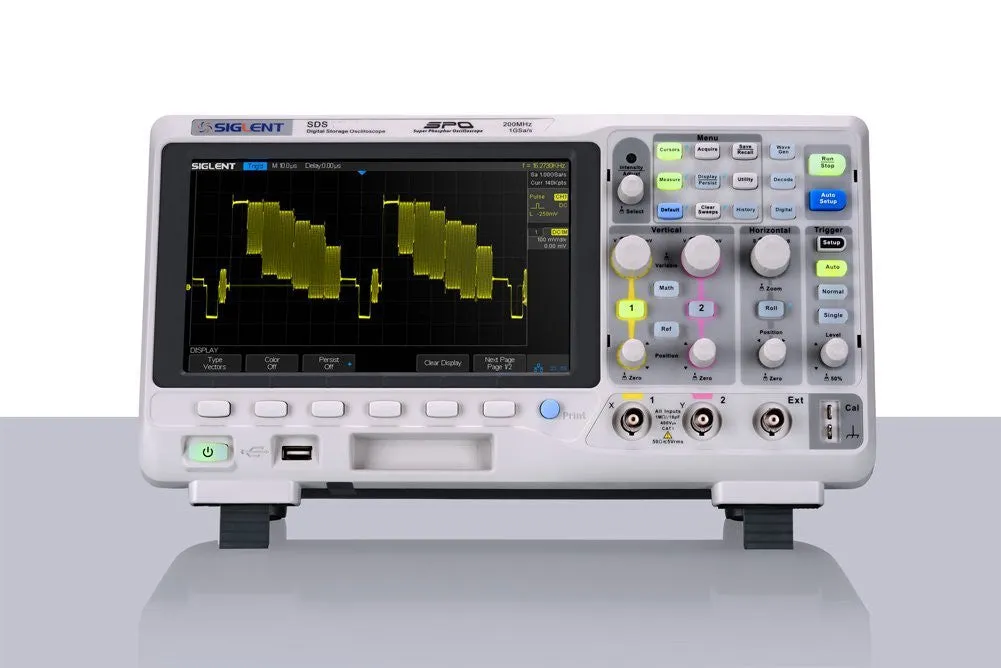

SIGLENT's new SDS1000X Series Super Phosphor Oscilloscopes are available in four bandwidths, 100 MHz and 200 MHz, a sample rate of 1 GSa/s, and a standard record length of 14 Mpts. The most commonly used functions can be accessed with its user-friendly one-button design.

• 200MHz, 100MHz, bandwidth models
• Real-time sampling rate up to 1GSa/s
• Record length of 14Mpts
• Waveform capture rate up to 60,000 wfs/s
• New generation of SPO technology
• Supports 256-level intensity grading and color temperaturedisplay
• Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval,
• Time out (Dropout), Pattern
• Serial bus triggering and decode, supports protocols I2C, SPI, UART/RS232, CAN, LIN
• Video trigger, supports HDTV
• Low background noise, supports 500μV / div to 10V / div voltage scales
• 10 types of one-button shortcuts, supports Auto Setup, Default Setup, Cursor, Measure, Roll, History, Persistence, Clear Sweep, Zoom and Print
• Bandwidth :200MHz
• Sample Rate(Max): 1GSa/s
• Channels:2 EXT
• Memory Depth(Max) 7Mpts/CH (Dual-Channel); 14Mpts/CH (Single-Channel)
• Waveform Capture Rate 60,000 wfms/s
• Trigger Type Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video
• Serial Trigger (Optional) I2C, SPI, UART/RS232, CAN, LIN
• Decode Type (Optional) I2C, SPI, UART/RS232, CAN, LIN
• DDS Waveform Generator No Yes No Yes
• Single Channel, Max Frequency up to 25MHz, 125 MS/s waveform generation Capabilities, wave length 16Kpts I/O USB Host, USB Device, LAN, Pass/Fail, Trigger Out, 1KHz Cal
• Probe(Std) 2 pcs passive probe PP510 2 pcs passive probe PP215
• Display 8 inch TFT LCD (800x480)
• Weight Net weight 3.26 Kg, Gross weight 4.25Kg
