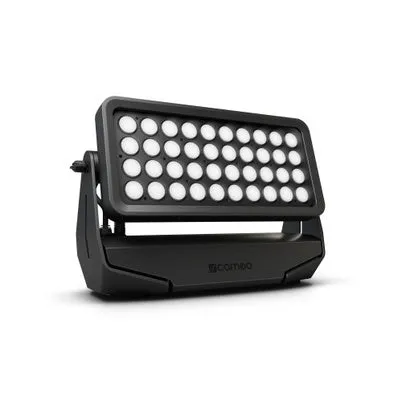

Equipped with a total of forty 15 W RGBW LEDs for a massive 21,000 lm output, the Cameo ZENIT® W600 is a powerful IP65 rated wash light for demanding outdoor applications. In addition to RDM and standard DMX capability it boasts a built-in 2.4 GHz W-DMX™ transceiver by Wireless Solution Sweden AB for convenient wireless control. The fixture also provides a rich variety of stunning automated programs for standalone or wireless master-and-slave operation.
For maximum versatility, the ZENIT® W600 sports Cameo's innovative SnapMag® technology. It allows you to add filter frames in less than a second without the need for tools or dismantling. Magnetic SnapMag® frames with precision light shaping diffusers providing a choice of 25°, 45°, 100° or elliptical 60° x 10° beam angles and a 4-way barn door are available as dedicated accessories.
Featuring advanced 16-bit technology for high-resolution colour mixing and dimming and an 18° beam spread, the ZENIT® W600 projects hugely intense, uniform washes. With colour temperature and individual LED colour correction, four selectable dimming curves and fully adjustable halogen lamp-like dimming response, the fixture is the perfect tool for highly professional lighting.

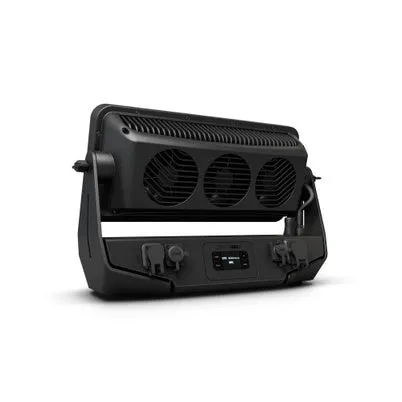

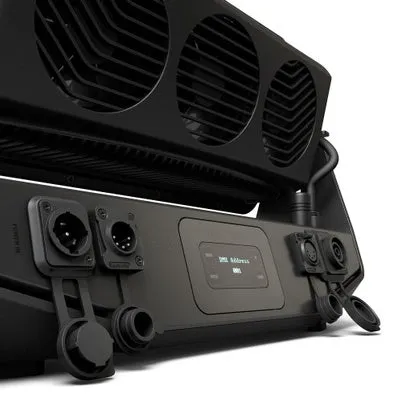

The ZENIT® W600's die cast aluminium housing integrates three temperature controlled fans that ensure optimized, low noise operation while a bright OLED display with four touch buttons permits easy, intuitive configuration. A security lock prevents unauthorized access to the luminaire's menu settings.
Specifications
- Product type: LED Outdoor Wash Light
- Type: ZENIT
- Colour spectrum: white
- Number of LEDs: 40
- LED type: 18 W Cree
- Average LED lifetime: 50000 hrs.
- Refresh rate: Adjustable Hz
- Dispersion: 21° Beam, 42° Field (without diffusor) °
- Lens: PE and tempered glass
- DMX input: 5-pin IP65
- DMX output: 5-pin IP65
- DMX mode: 1-channel, 2-channel 1, 2-channel 2, 3-channel, 4-channel, 5-channel
- DMX Functions: Dimmer, Dimmer Curve, Dimmer Fine, Dimmer Response, Strobe, Strobe Duration
- Standalone modes: Master / Slave mode, Static
- Controls: Enter, Mode, Value Down, Value Up
- Indicators: OLED Display
- Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
- Power consumption: 565 W
- Power factor: 0.98 PF (120V) / 0.94 PF (230V)
- Power connector: IP65
- Power supply connection: IP65
- Housing material: Aluminium
- Cabinet colour: Black
- Protection class IP: IP65
- Cooling: IP65 temperature-controlled fans
- Luminous flux: 40.795 lm
- Efficiency: 72.20 lm/W
- Operating Temperature: -15 - 45 °C
- Accessories (included): 2 x omega mounting, Power cord
- Width: 463 mm
- Length: 291 mm
- Height: 161 mm
- Weight: 11 kg
