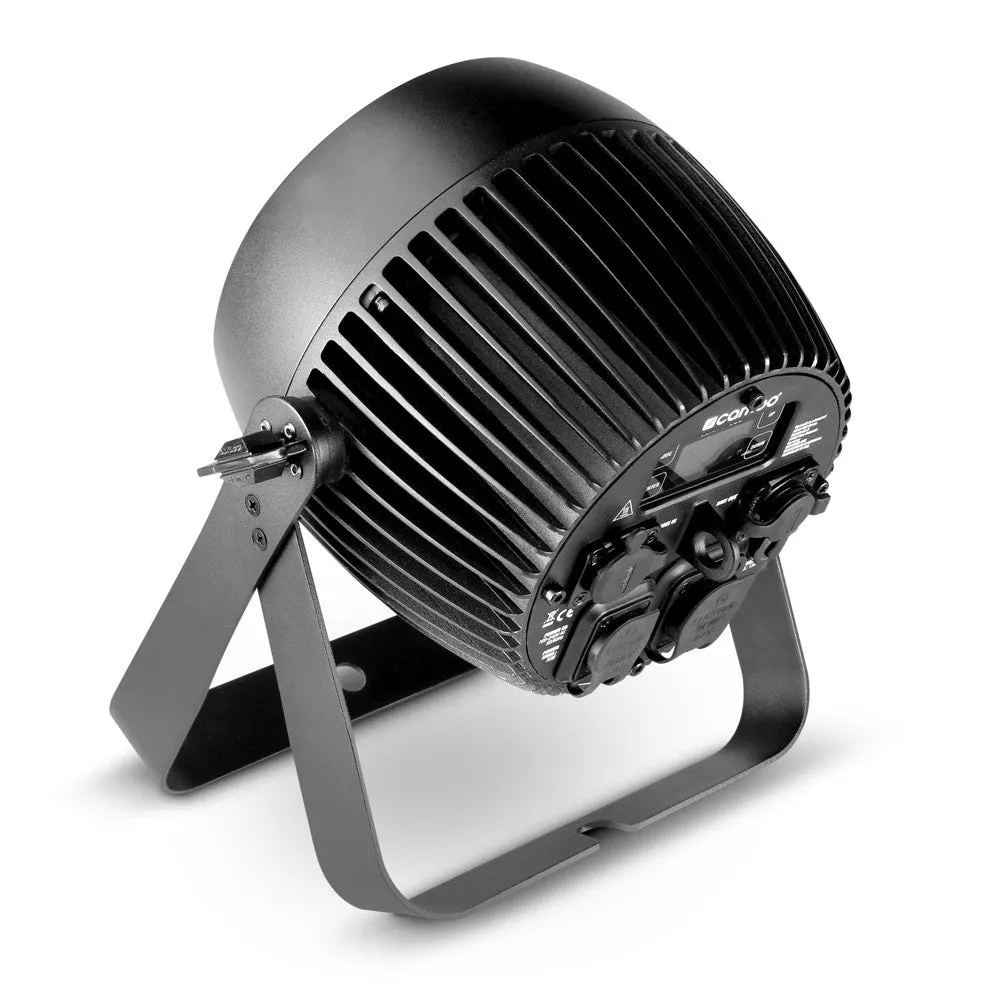

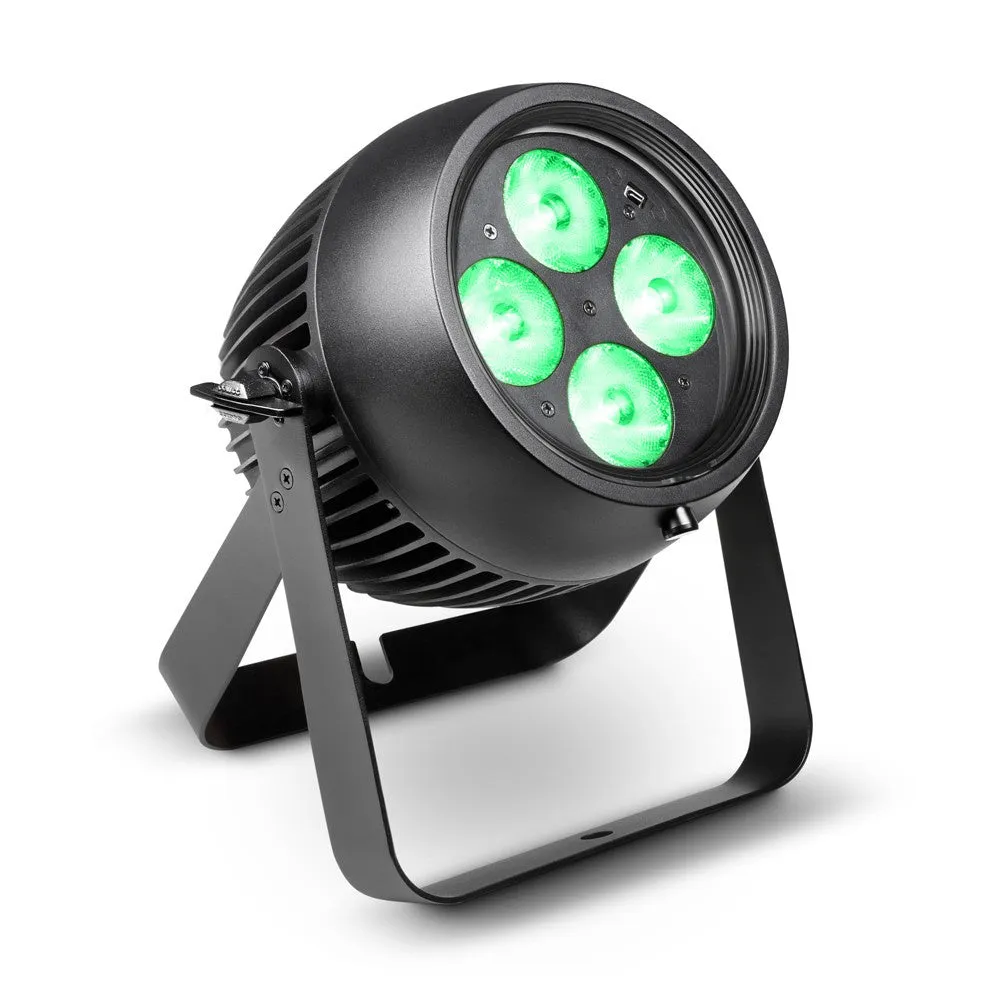

The Cameo Zenit® P130 is an IP65 rated outdoor PAR can with a sharp, tightly focussed beam angle of 8°. For an additional choice of 25° or 45° angles, it comes with two ultra-efficient light shaping diffusers which are specially designed to maintain the fixture's powerful illuminance. The Zenit® P130 is equipped with four 32W RGBW Osram OSTAR LEDs for brilliant, uniform Colours while 16-bit technology enables high-resolution Colour mixing and dimming. With a 3,600 Hz refresh rate and flicker- free operation the advanced Zenit® P130 is the perfect choice for motion picture and TV applications. Highly effective convection cooling ensures totally noise-free operation.
Truly professional, the Zenit P130® is RDM-compatible and includes 7 modes of DMX control, exciting automated programs as well as master, slave and standalone capability. It features Colour temperature and individual LED Colour correction, a high- speed strobe, 4 selectable dimming curves and adjustable halogen lamp-like dimming response. A security lock prevents unauthorized menu access.

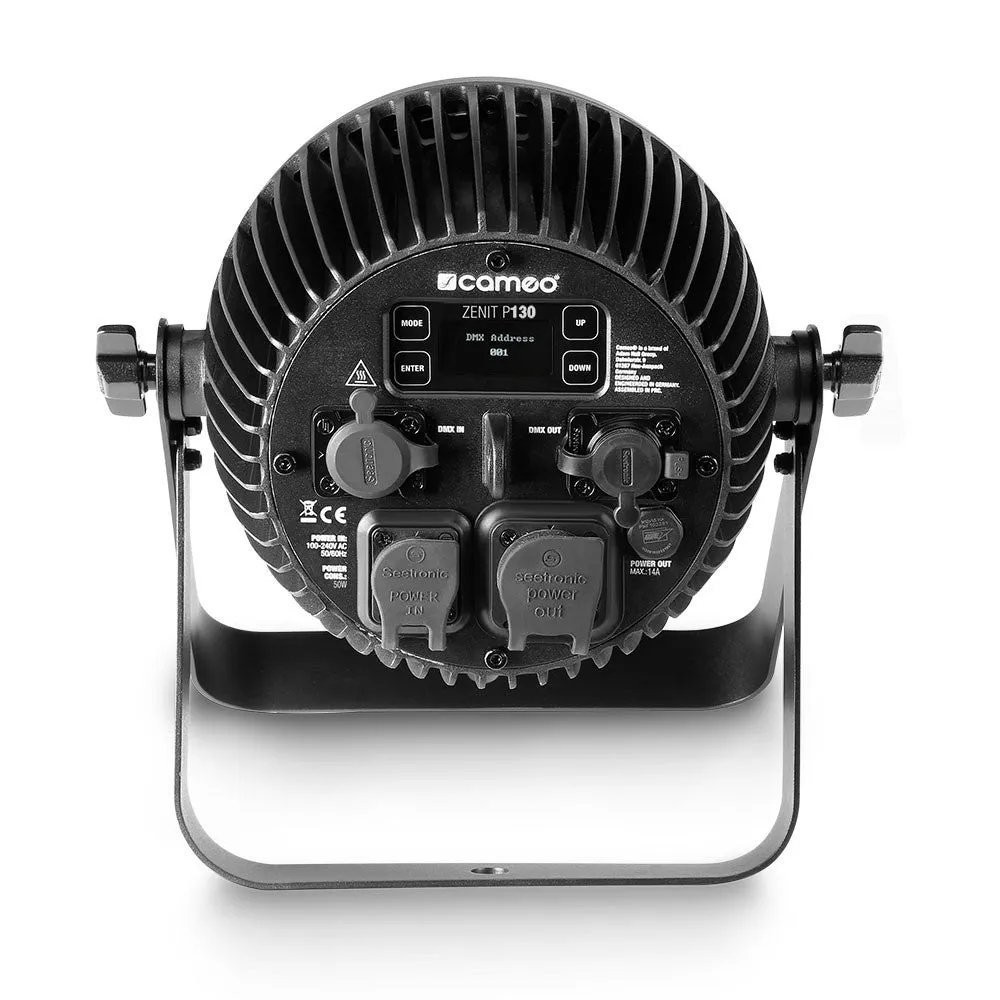

To enable easy daisy-chaining, the heavy-duty die-cast aluminium housing provides innovative locking 5-pin DMX and AC power inputs and outputs. A modern OLED display with 4 touch buttons allows easy, intuitive configuration.
Features

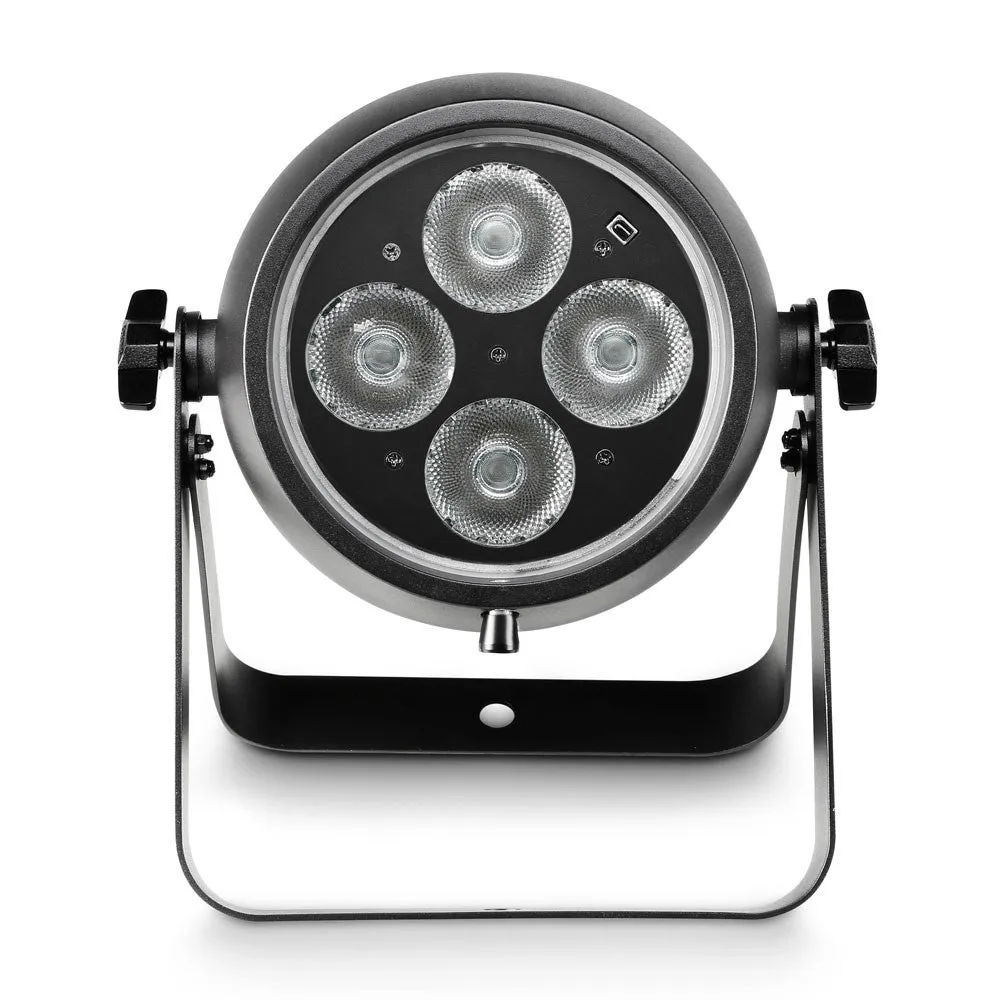

- Professional IP65 outdoor PAR can with 4 x 32 W RGBW Osram OSTAR LEDs and 8° beam angle
- Includes 2 innovative light shaping diffusers for beam angles of 25° or 45° while maintaining transmission efficiency
- RDM capability
- 16-bit technology for high-resolution Colours and dimming
- Flicker free, ideal for motion picture and TV applications
- Colour temperature and individual LED Colour correction
- 4 ultra smooth dimming curves and adjustable halogen lamp-like dimming response
- 7 modes of DMX control plus master, slave and standalone capability
- OLED display with 4 touch buttons for easy configuration
- Security lock against unauthorized menu access
- Convection cooling for noise-free performance
Specifications
- Product type: LED PAR Lighting
- Type: Outdoor
- Colour spectrum: RGBW
- Number of LEDs: 4
- LED type: 32W Osram OSTAR LED (approx.50.000 operating hours)
- Refresh rate: 3600 Hz
- Dispersion: 14° Field °, 8° beam °
- DMX input: 5-pin IP65
- DMX output: 5-pin IP65
- DMX mode: 10-channel, 15-channel, 2-channel, 3-channel, 4-channel, 8-1 Channel, 8-2 Channel
- DMX Functions: colour fade, colour jump, colour macro, CTC (Colour Temperature Correction), Dimmer, Dimmer Curve, Dimmer Fine, Dimmer Response, reset, RGBW, RGBW Fine, Strobe
- Standalone modes: Auto programs, colour fade, colour jump, colour macro, Dimmer Curve, Dimmer Response, Display Lock, Master / Slave mode, static colour, Strobe, White Balance adjustable
- Controls: Enter, Mode, Value Down, Value Up
- Indicators: OLED Display
- Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
- Power consumption: 155 W
- Power connector: IP65
- Housing material: Die-cast aluminium
- Cabinet colour: Black
- Protection class IP: 65
- Cooling: Convection
- Illuminance: 92600lx @ 1m
- Luminous flux: 2398 lm
- Operating Temperature: - 15 - 45 °C
Dimensions
- Width: 186.6 mm
- Height: 186.6 mm
- Length: 159 mm
- Weight: 4,8 kg
- Features: IR Remote Control
