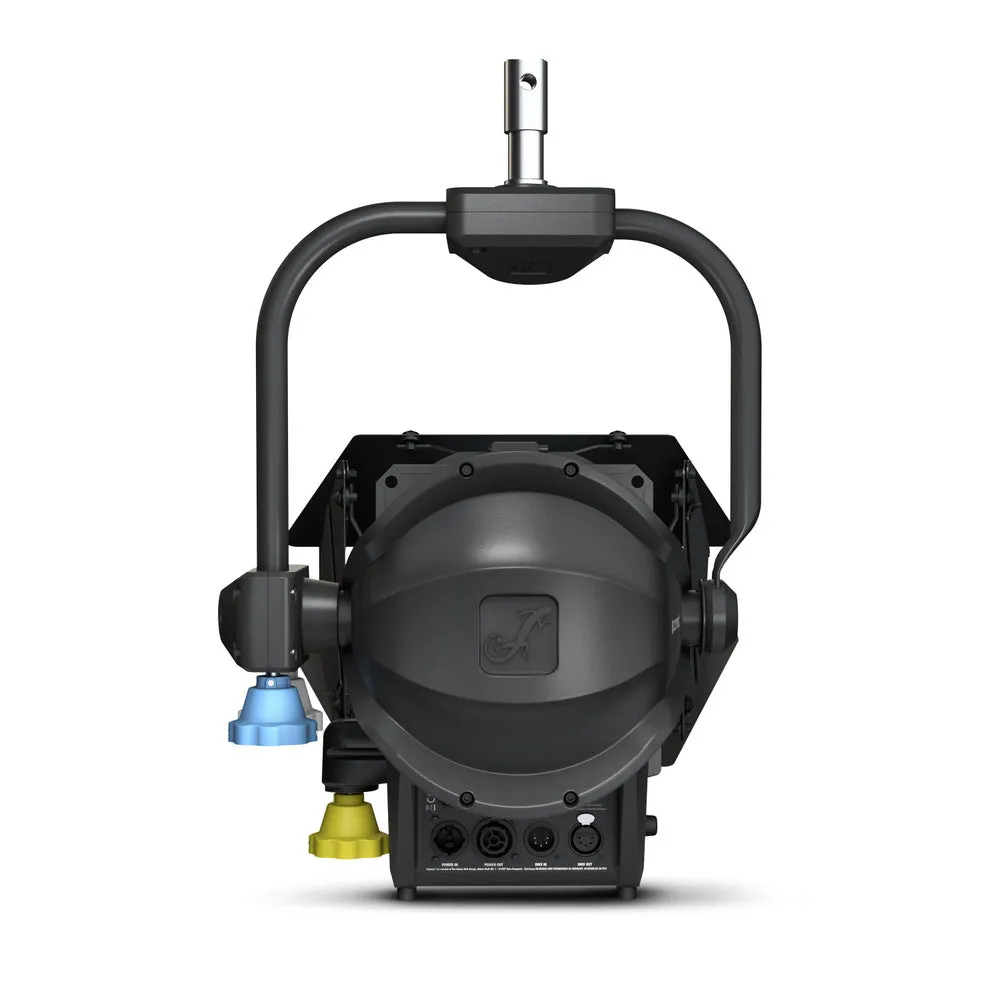

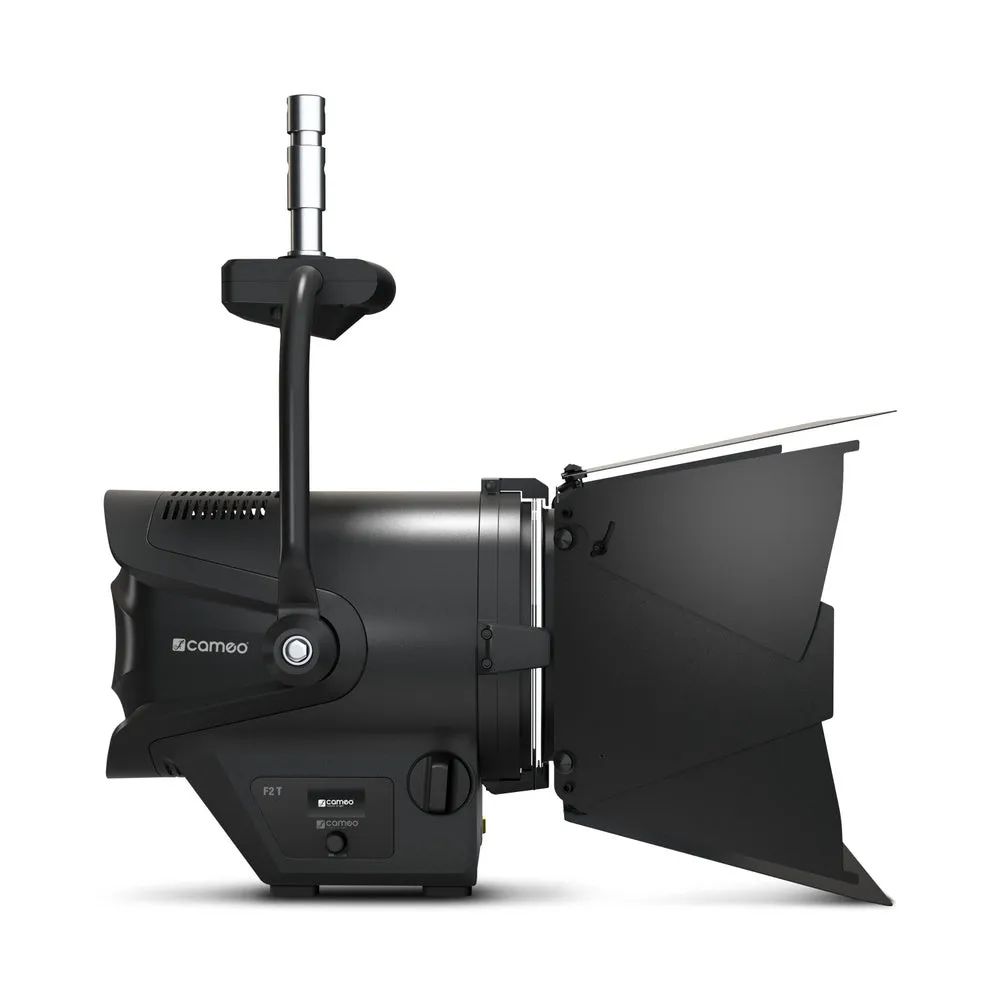

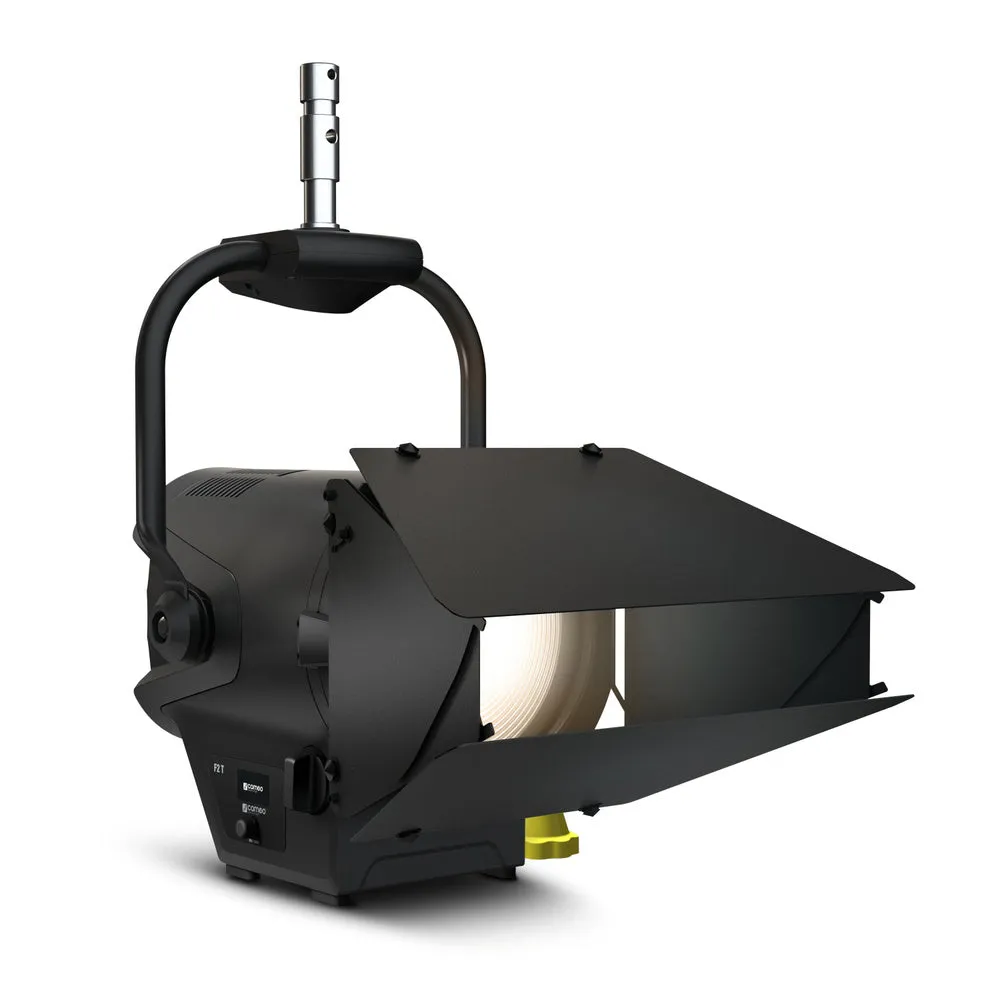

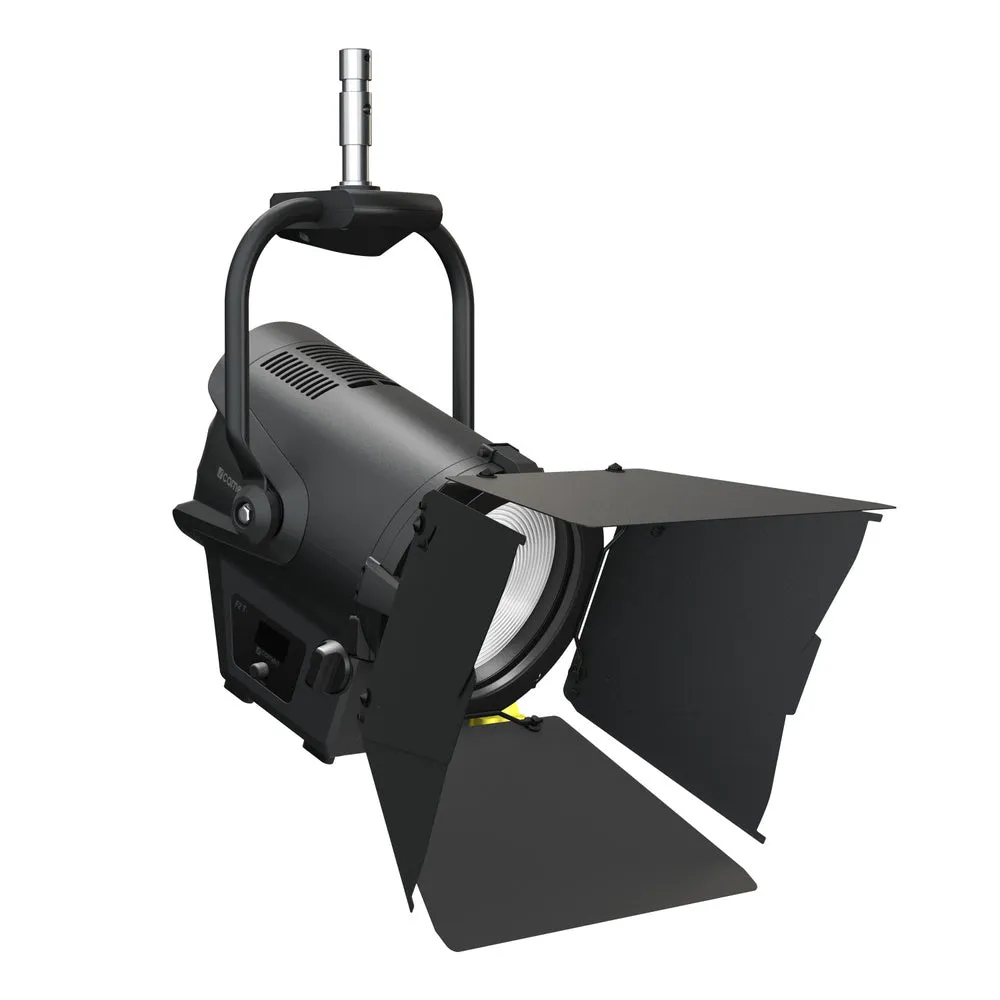

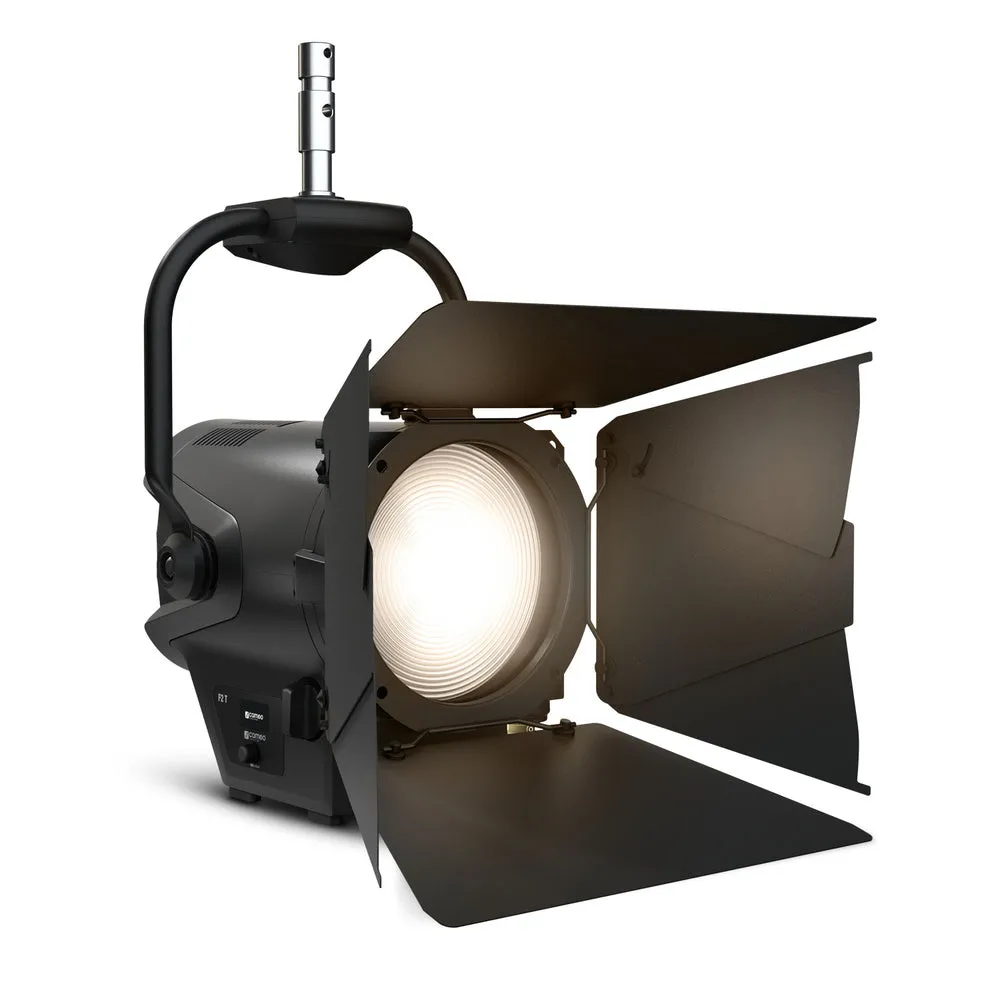

Looking for a professional Fresnel spotlight with a high-quality 200 mm lens and a high luminous flux of 12,500 lm? The Cameo F2 T PO is your perfect choice. Now also with pole operation: The Cameo F2 T PO is perfect for anyone who prefers precise manual adjustment from the ground and is unable or unwilling to use a ladder. The RDM-enabled spotlight creates a soft edged beam of light with a continuously adjustable beam angle of 15° to 40°. It's the perfect, energy-saving replacement for traditional 1-kW Fresnel models. Its 240-watt warm white LED has a colour temperature of 3,200 K and a service life of 50,000 hours. Its extremely high colour rendering index of 97 reproduces pure and natural colours.
The F2 T PO has 6 DMX control modes, a fast strobe function and four 16-bit dimmer curves with adjustable response. Six selectable pulse width modulation frequencies up to 25 kHz ensure flicker-free operation. High- efficiency heatpipe cooling and a temperature-controlled fan provide optimal operation. The robust, die-cast aluminium housing is equipped with a rotary encoder and OLED display for easy configuration of the spotlight. 5-pin DMX connectors and Power Twist mains sockets facilitate simple daisy-chaining. 8-way barn door, a gel frame and mains cable are included.
Features
- Tungsten LED Fresnel with 3,200 K colour temperature and 12,500 lm output

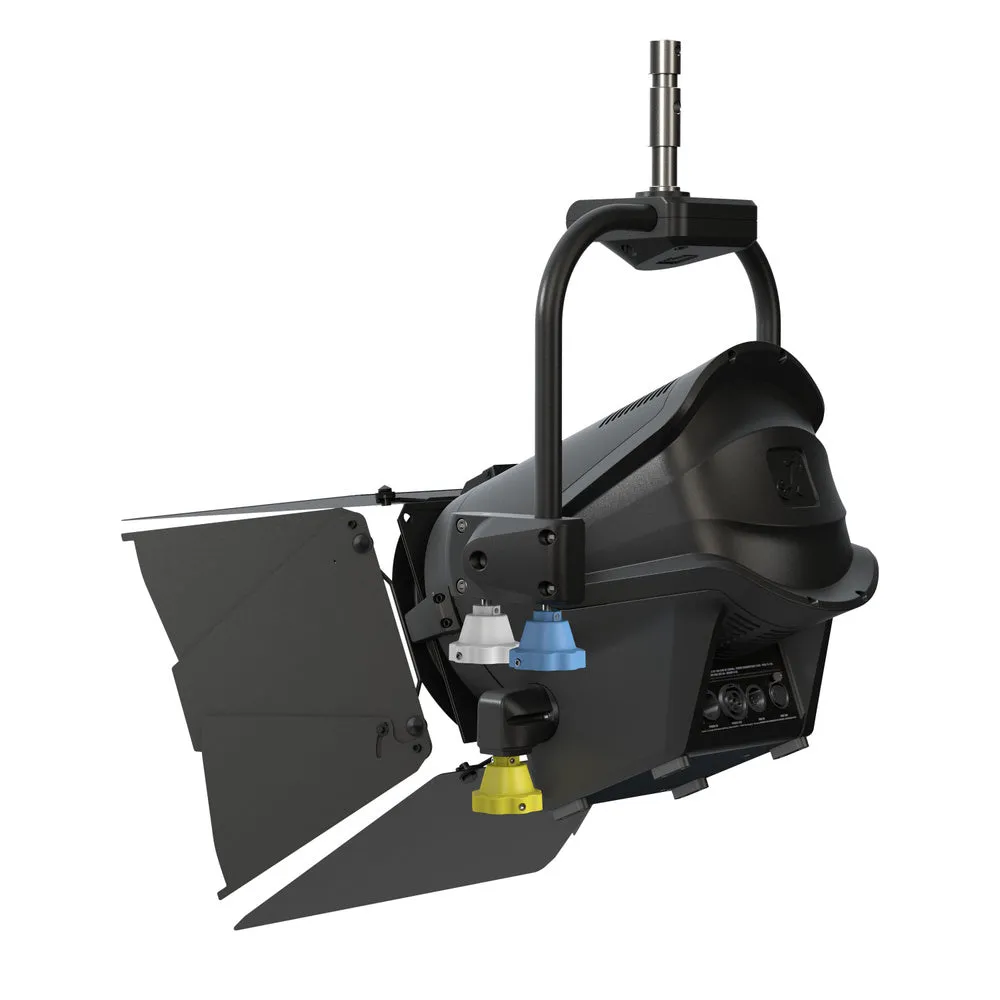

- Easy control from the base by using a bar for pan, tilt and zoom
- Perfect replacement for conventional 1 kW Fresnels
- Faithful colour reproduction, CRI rating of 96, TLCI of 97
- Continuously variable zoom for 15° to 40° beam spread
- 16-bit dimming with 4 selectable curves and adjustable response
- Super efficient heat pipe cooling and temperature controlled fan for optimum operation
- RDM enabled
- Selectable PWM frequencies up to 25 kHz
- Flicker-free and silent operation, ideal for TV, film and theatre applications

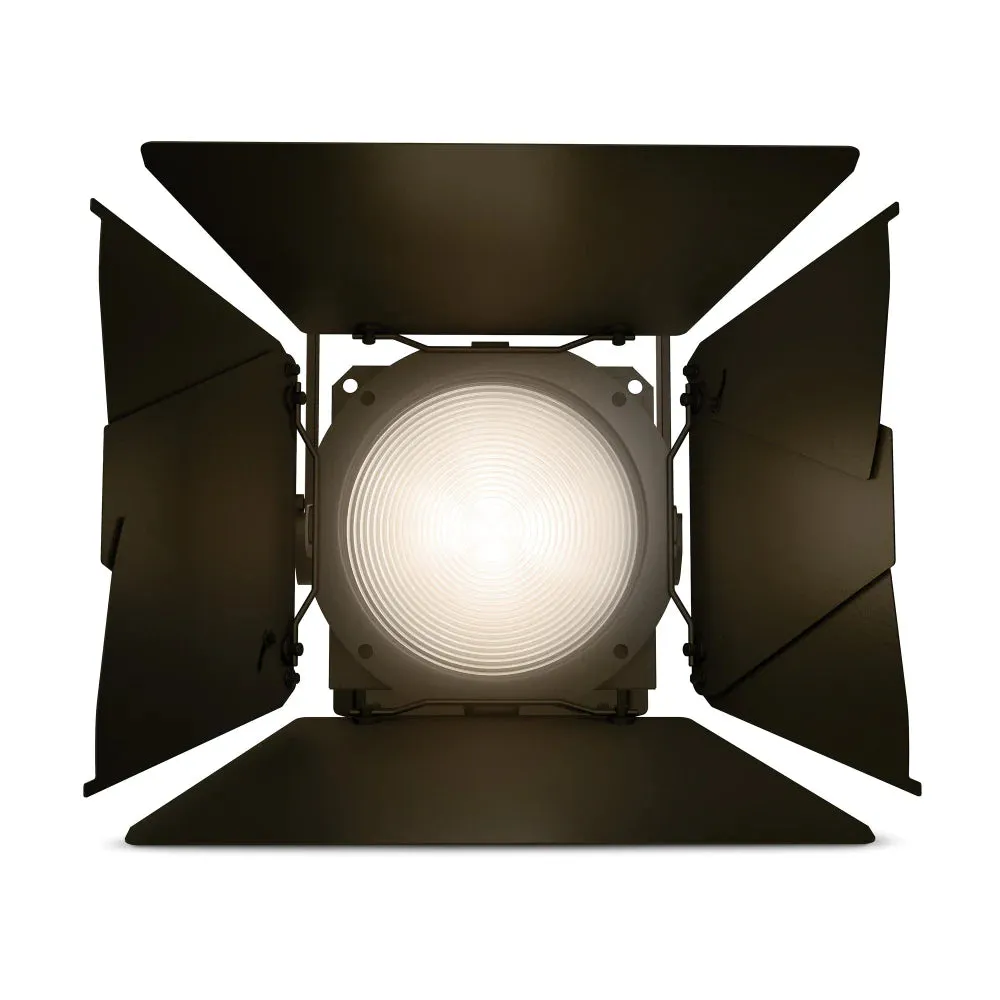

- Includes 8-way barn door and gel frame
Specifications
- Product type: LED Fresnel Spotlight
- Type: Theater Fresnel
- Colour spectrum: Tungsten, Warm white
- Number of LEDs: 1
- LED type: 240 W (ca. 50,000 Operating Hours)
- LED PWM Frequency: Adjustable: 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12000 Hz, 25000
- Dispersion: Beam Angle: 15 ° - 40 °, Field Angle: 28 ° - 60 °
- Lens: 200 mm Fresnel

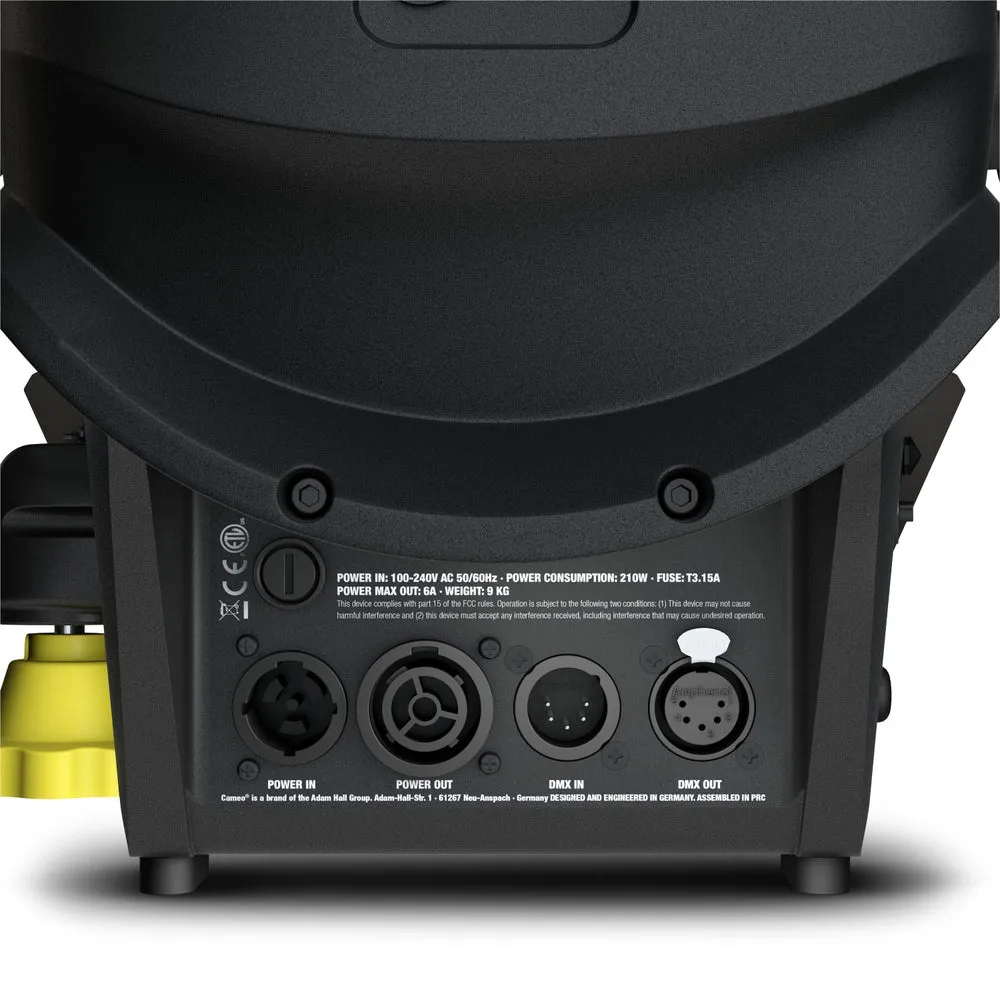

- DMX input: 5-Pol
- DMX output: 5-Pol
- DMX mode: 1-channel, 2-channel 1, 2-channel 2, 3-channel, 4-channel, 5-channel
- DMX Functions: Device Settings, Dimmer, Dimmer Curve, Dimmer Fine, Strobe
- Standalone modes: Master / Slave mode, Static
- Controls: Master / Slave mode, Static
- Indicators: OLED Display
- Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
- Power consumption: 210 W
- Power Factor: 0.94 / 240 V, 0.99 / 120 V
- Power connector: TRUE1 Compatible Power I/O Socket
- Housing material: Die-cast aluminium
- Cabinet colour: Black
- Protection class IP: IP20
- Cooling: Combination of heat pipe and temperature controlled fan
- Luminous flux: 12500 lm
- Efficiency: 57 lm/W
- Color temperature: 3200 K
- Operating Temperature: -15 - 45 °C
- Accessories (included): 8-way barndoor, gel frame, Power cord
- Weight: 11,6 kg
- Width: 357 mm
- Height: 573 mm
- Length: 322 mm
