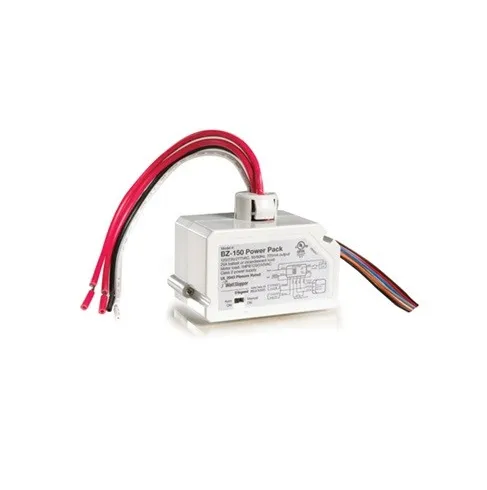

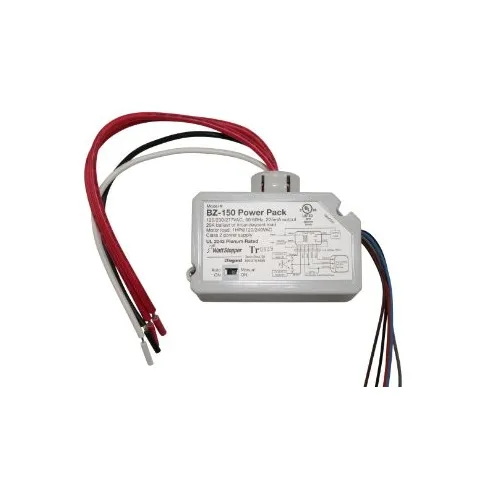

The BZ-150 Universal Voltage Power Pack is full featured and can provide 24 VDC operating voltage to Wattstopper’s low-voltage occupancy sensors. In addition, this device is RoHS-conforming.

Features

• Input Voltage: 120/277VAC, 50/60Hz
• Output: 24 VDC, 225 mA (with relay connected)
• Load Requirements:
• Ballast, Incandescent: 20amp, 120/277VAC
• Motor: 1HP, 120/240VAC
• High-efficiency switching power supply
• Plenum rated
• Zero crossing for reliability and increased product life
• Hold ON and Hold OFF inputs
• Auto-ON or Manual-ON operating mode
• Overcurrent protection (low-voltage)
