Product Details
＋

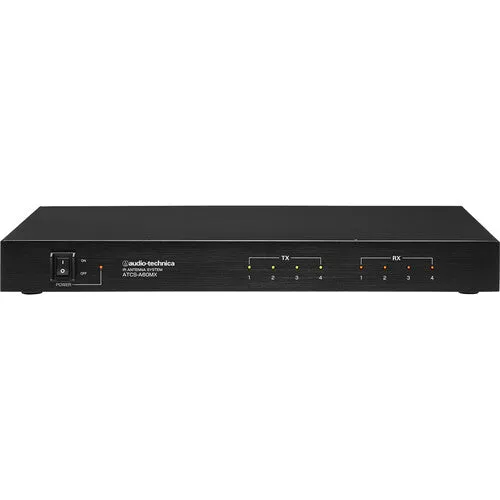

The Audio-Technica ATCS-A60MX is a long-range antenna mixer for the ATCS-A60 infrared conference system. The unit can drive up to four ATCS-A60TX transmitters and up to four ATCS-A60RX receivers (transmitters and receivers available separately) allowing you to extend the operating range of the system to cover for larger spaces with more participants. Up to four ATCS-A60MX units can be connected to the ATCS-60a master control unit (available separately), allowing you to expand the system to accommodate up to sixteen transmitters and receivers in one installation.
- Long-range antenna mixer for the ATCS-A60 infrared conference system
- Extends the system's operating range
- Drives up to four ATCS-A60TX transmitters and four ATCS-A60RX receivers (available separately)
- Expand your system to accommodate up to sixteen transmitters and receivers by connecting up to four ATCS-A60MX units to the ATCS-60a master control unit (available separately)
- 8 LED indicators on front panel for transmitters and receivers
Audio-Technica ATCS-A60MX Specs
General
| Compatibility | Audio-Technica ATCS-60 ATCS-A60TX Audio-Technica ATCS-60 ATCS-A60RX Audio-Technica ATCS-60 ATCS-C60a |
| Audio I/O | 4 x BNC Coaxial Input (Transmitters) 4 x BNC Coaxial Input (Receivers) 1 x BNC Coaxial Input/Output |
Power
| Power Source | AC Input (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Environmental
| Operating Temperature | 32 to 72°F / 0 to 40°C |
Physical
| Mounting | Side: 2 x Rack Mounts |
| Dimensions | 16.5 x 8.9 x 1.7" / 420 x 225 x 44 mm |
| Weight | 6.6 lb / 3 kg |
