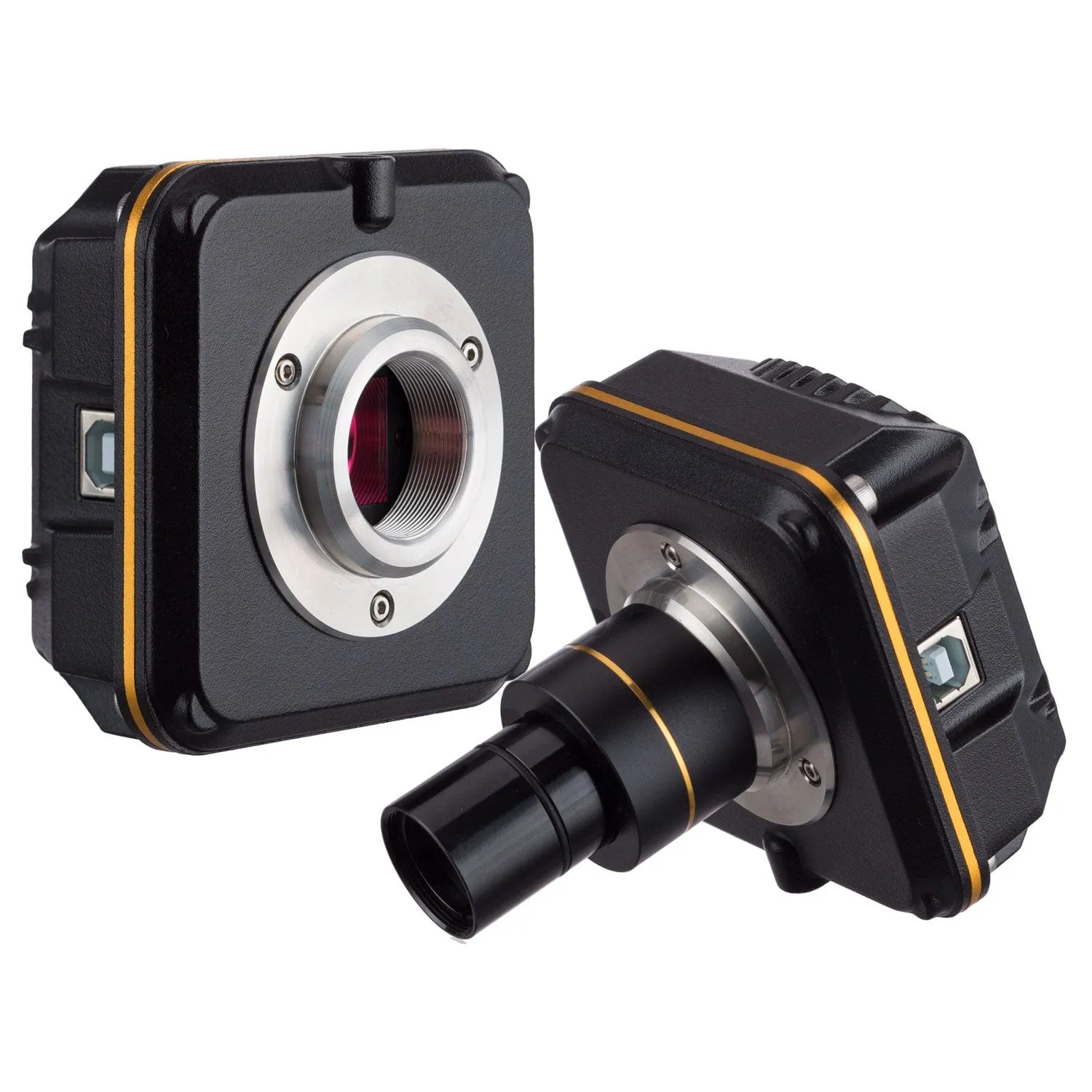

The MU500B is an upgraded version of our MU series cameras. With an increased data-buffer, image-processing has been improved resulting in higher framerates. With the universal USB 2.0 interface, this bus-powered 5MP camera is a go-anywhere imaging solution. Deriving power from the USB connection, MU series cameras can be used at home, in a lab, or in the field. The industry-standard C-mount design allows this camera to be connected directly to C-mount photo-ports, or used in conjunction with an array of lenses and adapters to mount to virtually any popular microscope line.

With software available for Windows, Mac, and Linux, the MU series is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Camera Specifications:

Sensor: Aptina MT9P001 (color)

Sensor Type: CMOS

Sensor Size: 5.7x4.3mm (1/2.5" class)

Pixel Size: 2.2 micrometers

Resolution: 5.1MP

Frame Rate: 55fps @ 640x480, 18fps @ 1280x960, 6.8fps @ 2592x1944

Sensitivity: .53V/Lux-sec

Connectivity: USB 2.0

Compatibility: Windows (32/64 bit) 8.1/10/11, Mac OSX, Linux

Mounting Sizes: 23mm, 30mm, 30.5mm, and C-mount

Software Specifications:

OS Requirements: Windows (32/64 bit) 8.1/10/11, Mac OS 10.8 , Linux kernel 3.13

Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0

Advanced software for Windows:
- offers Stitching, EDF, video recording and measurement functions
- conducts measurements for lengths, angles, arcs, areas and etc.
- saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
- live video and still image capture can be set in different resolutions simultaneously
More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances

Lifetime free software upgrades

Contents:

One 5MP USB2.0 Digital Camera

One Reduction Lens

One 6' (1.8m) USB Cable

Two Adapters: 30mm and 30.5mm

One CD with Software and User's Instructions
