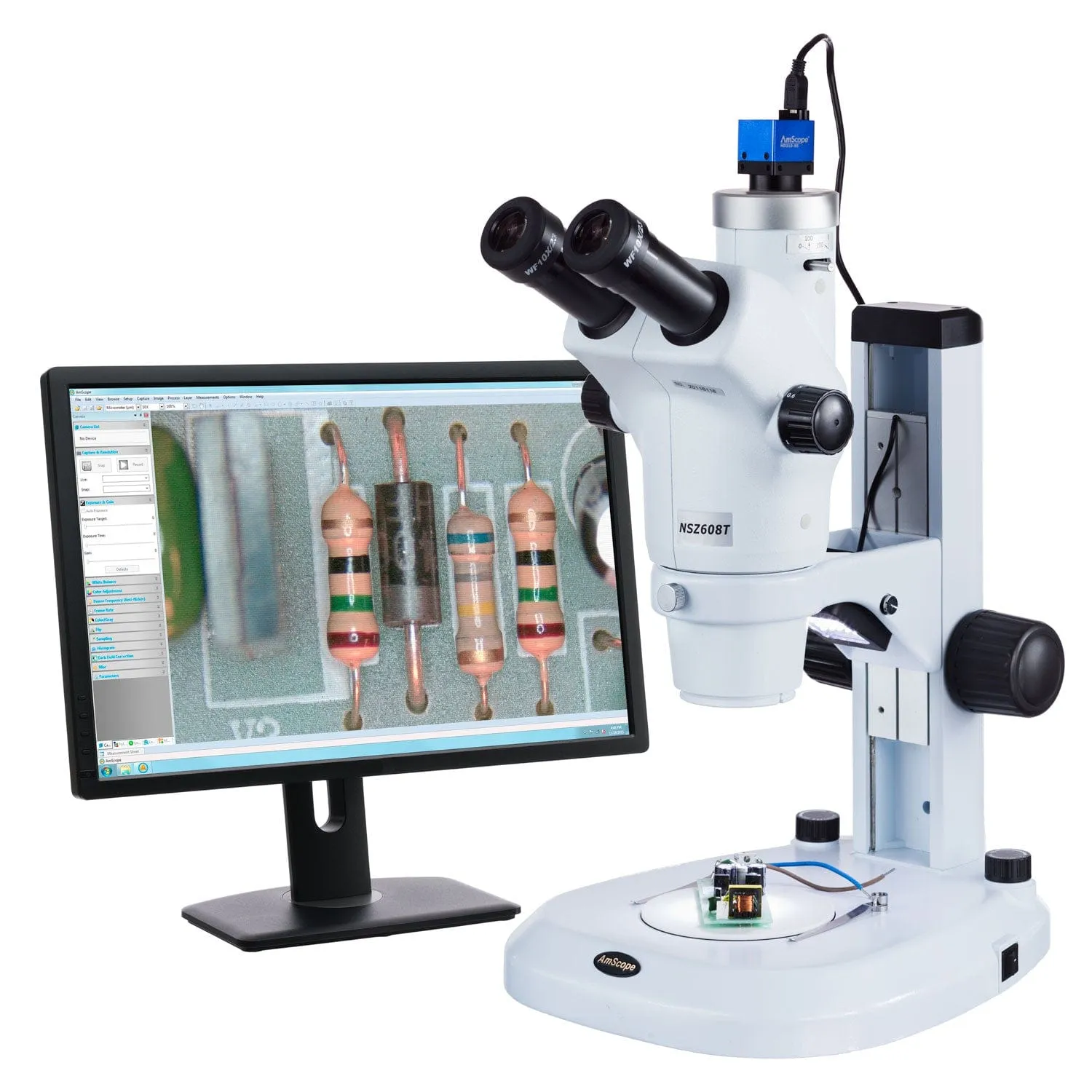

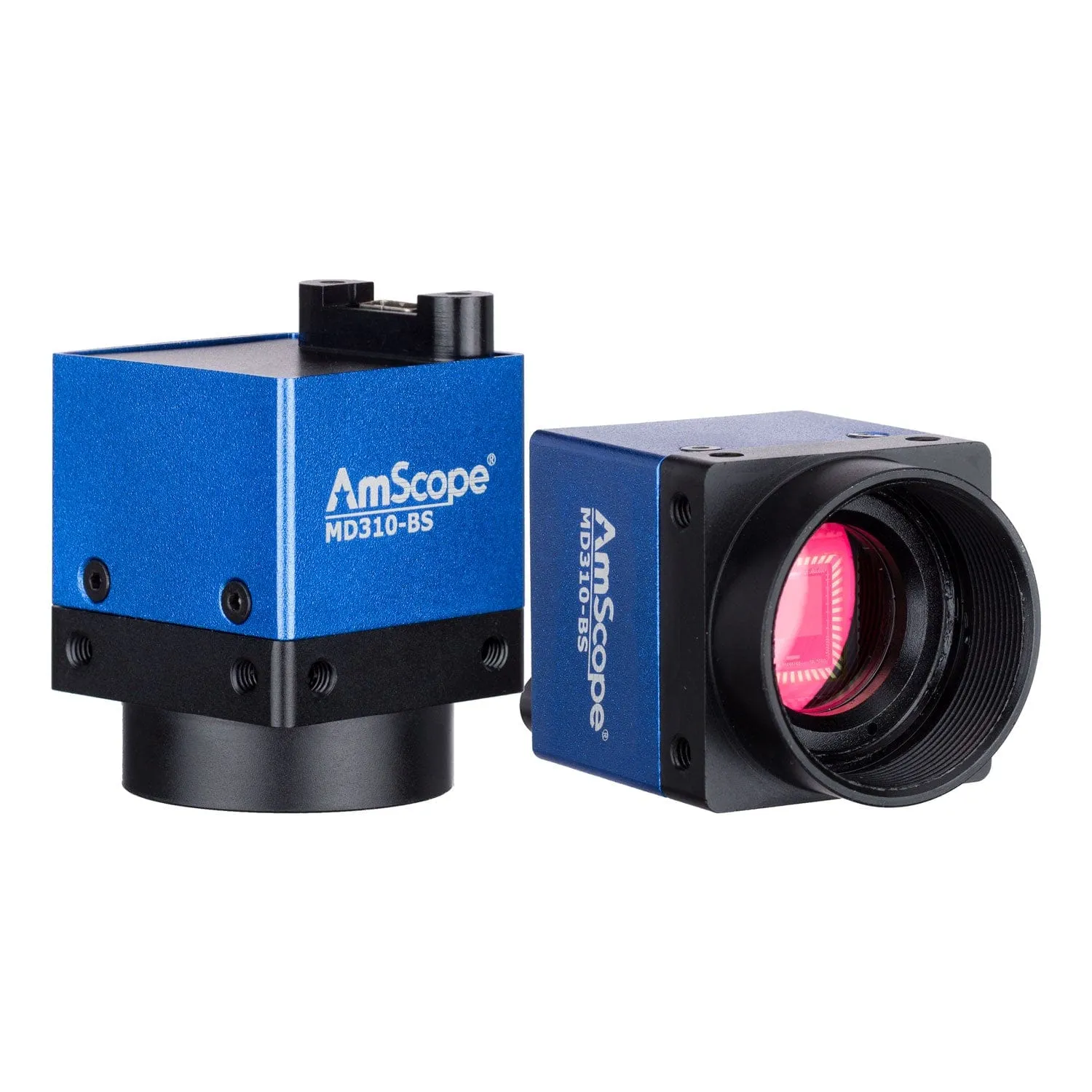

The MD310C-BS is a 3.1MP USB digital camera designed primarily for industrial inspection. The ultra-compact design, and industry-standard C-mount lens port make this a versatile camera for microscopy and inspection lines. Attach the camera directly to a C-mount photo-port, or use an optional C-mount lens. The optimized digital sensor and imaging buffer provide extremely high frame-rates, up to 83fps. Using the USB interface for both connectivity and power, only a single cable is needed.
With software available for Windows, Mac, and Linux, this camera package is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
Camera Specifications:
Software Specifications:
- offers Stitching, EDF, video recording and measurement functions
- conducts measurements for lengths, angles, arcs, areas and etc.
- saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
- live video and still image capture can be set in different resolutions simultaneously
More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances
Contents:
