Alesis MultiMix 10 Wireless Rackmount 10-Channel Mixer with Bluetooth

The MultiMix 10 Wireless Rackmount 10-Channel Mixer with Bluetooth from Alesis is well suited to smaller clubs and venues, houses of worship and mobile rigs. The MultiMix features 4 mono channels, 2 stereo channels and a Bluetooth audio channel. Each channel offers a peak LED, trim knob, 2-band EQ, pre and post aux sends, a pan knob, and a smooth-travelling 60mm fader.

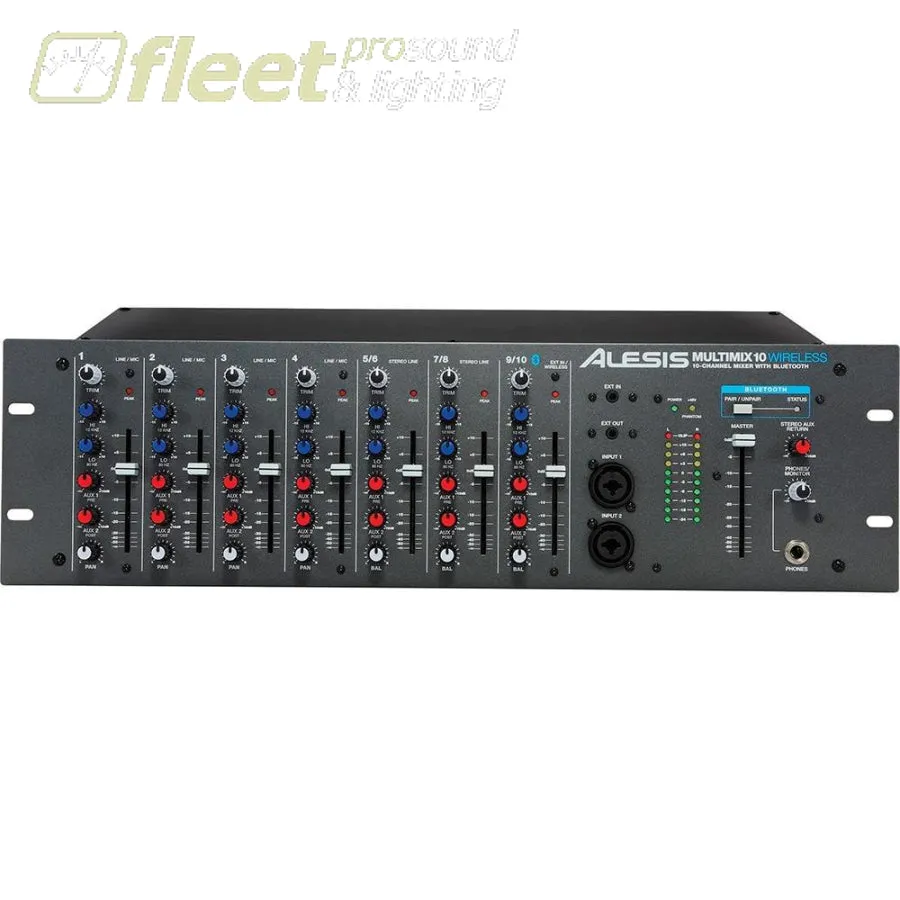

Channels 1 through 4 offer both XLR microphone inputs and balanced 1/4" TRS inputs. Phantom power can be engaged via a global switch on the rear panel. Channels 1 through 4 also provide 1/4" TRS send/return inserts, allowing you to add external processing to an individual signal path. Channels 1 and 2 also have doubled connections via XLR/TRS combo jacks on the MultiMix's front panel. The front panel connections override the respective rear inputs, making it easy to temporarily connect a microphone or other sound source without unplugging anything.

The stereo-paired analog channels, 5/6 and 7/8, offer left and right balanced 1/4" TRS inputs. Channel 7/8 also offers a stereo pair of RCA inputs. Channel 9/10 is dedicated to receiving a stereo audio signal from any Bluetooth-enabled device. Simple, single-button front-panel pairing makes it easy.

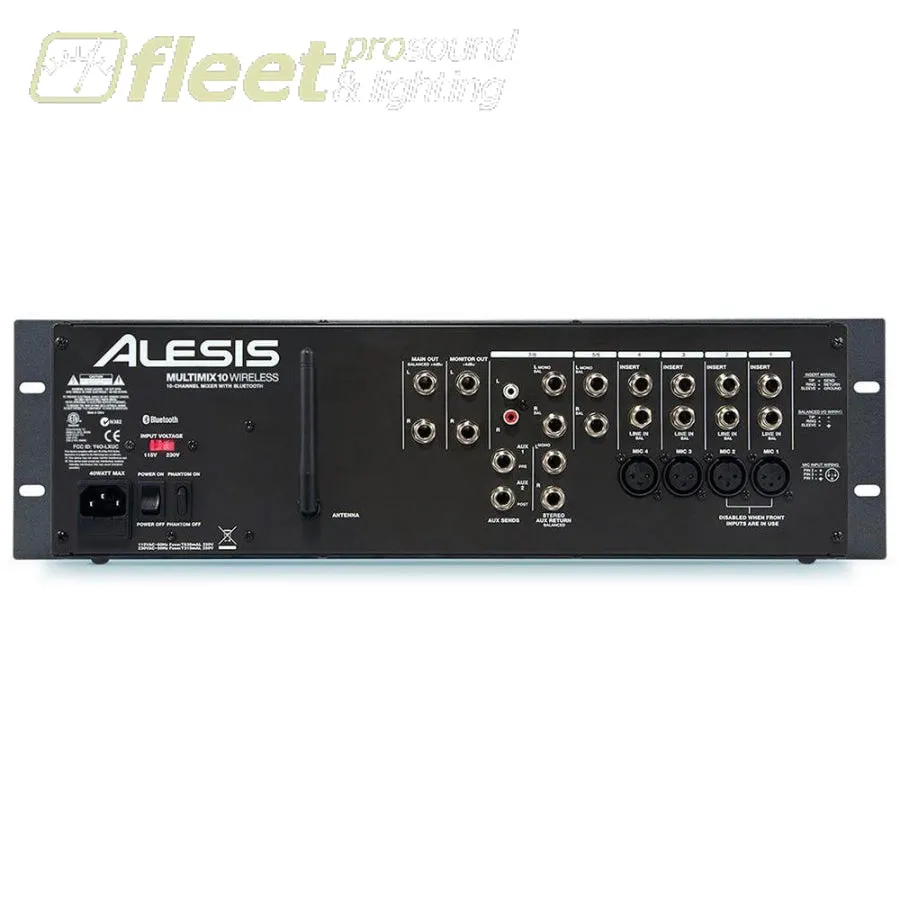

On the back panel, the MultiMix 10 Wireless features 1/4" TRS jacks for the pre- and a post-fader aux as well as the stereo aux return, main outputs and monitor outputs. An 1/8" jack allows a non-Bluetooth source to access Channel 9/10. Located alongside the master fader, the twin 10-stage LED meters feature red peak indicators. A dedicated 1/4" stereo headphone jack is provided; the level is controlled by the monitor/phones knob. A handy 1/8" output provides the main mix directly from the front panel.

Features:

One-Button Pairing for Bluetooth Input

Four XLR Mic Inputs with Phantom Power

Two Stereo Channels with 1/4" TRS Inputs

Front-Panel Stereo Mix Output

60mm Faders on Each Channel

Pre- and Post-Fader Aux Sends

Stereo Aux Return

Specifications:
Input Connectors:

4 x XLR balanced - channels 1 to 4

4 x 1/4" TRS balanced line - channels 1 to 4

4 x 1/4" TRS balanced (2 x L/R) - channels 5 to 8

2 x RCA phono (1 x L/R) - channels 7 and 8

Output Connectors:

2 x 1/4" TRS (1 x L/R) - Monitor Out

2 x 1/4" TRS (1 x L/R) - Main Out

AUX Sends: 1 x 1/4" TRS - Aux 1, pre-fader

1 x 1/4" TRS - Aux 2, post-fader

AUX Returns:

2 x 1/4" TRS (1 x L/R) - Stereo Aux Return

Inserts: 4 x 1/4" TRS send/return jacks - channels 1 to 4

Antenna: Rear-panel Bluetooth antenna for channels 9 and 10

Dimensions:

Package Weight: 11.1 lb

Box Dimensions (LxWxH): 22.7 x 9.8 x 8.7"
