Product Details
＋
Upgrade your factory sheet metal terminals
Upgrade your 2009-2014 Ford F-150 OEM sheet metal battery terminals with our SDHQ Built Billet 6061 Aluminum Battery Terminals.
Our battery terminal kit are machined out of 6061 aluminum replacing your F-150's OEM terminals.
VEHICLE FITMENT:
- 2009-2014 Ford F-150
KEY FEATURES:
- 3D CAD designed, engineered & built in-house for our typical SDHQ Built quality, fit, and finish
- Upgrades factory sheet metal terminals.
- Positive and Negative Billet 6061 Aluminum Terminals.
- Cutting the factory terminals off is required.

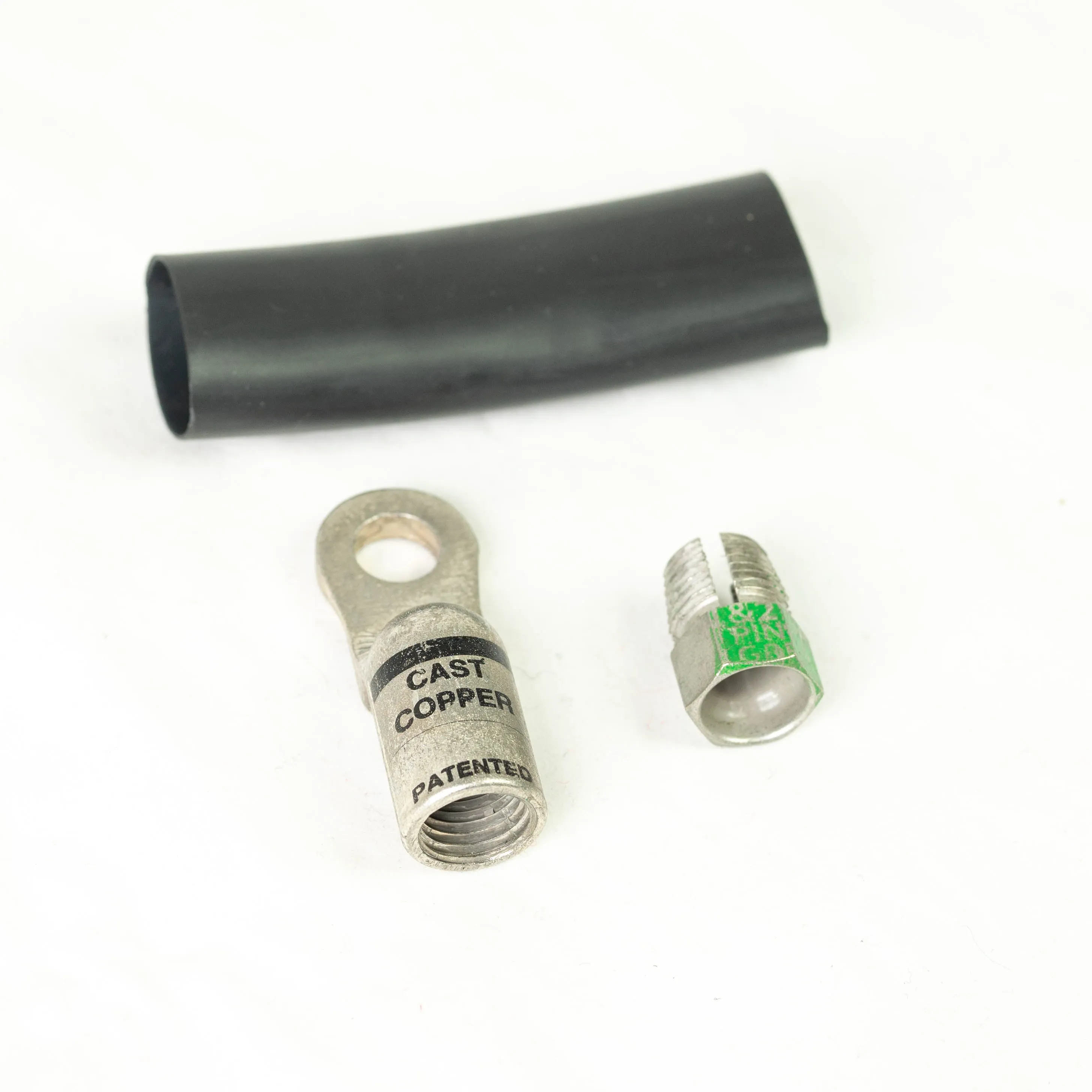

- 1-2 AWG Copper Compression Lugs included to replace terminals.
- (2) ⅜”, (1) 5/16” and (2) ¼” mounting options for accessories.
- Stainless Steel Hardware with included Anti-Seize Compound.
- Recommended for use with sealed batteries.
- Torque Specifications:
- Torque ¼” - 20 Hardware to 4 ft-lb.
- Torque 5/16” - 18 Hardware to 8 ft-lb.
- Torque ⅜” - 16 Hardware to 18 ft-lb.

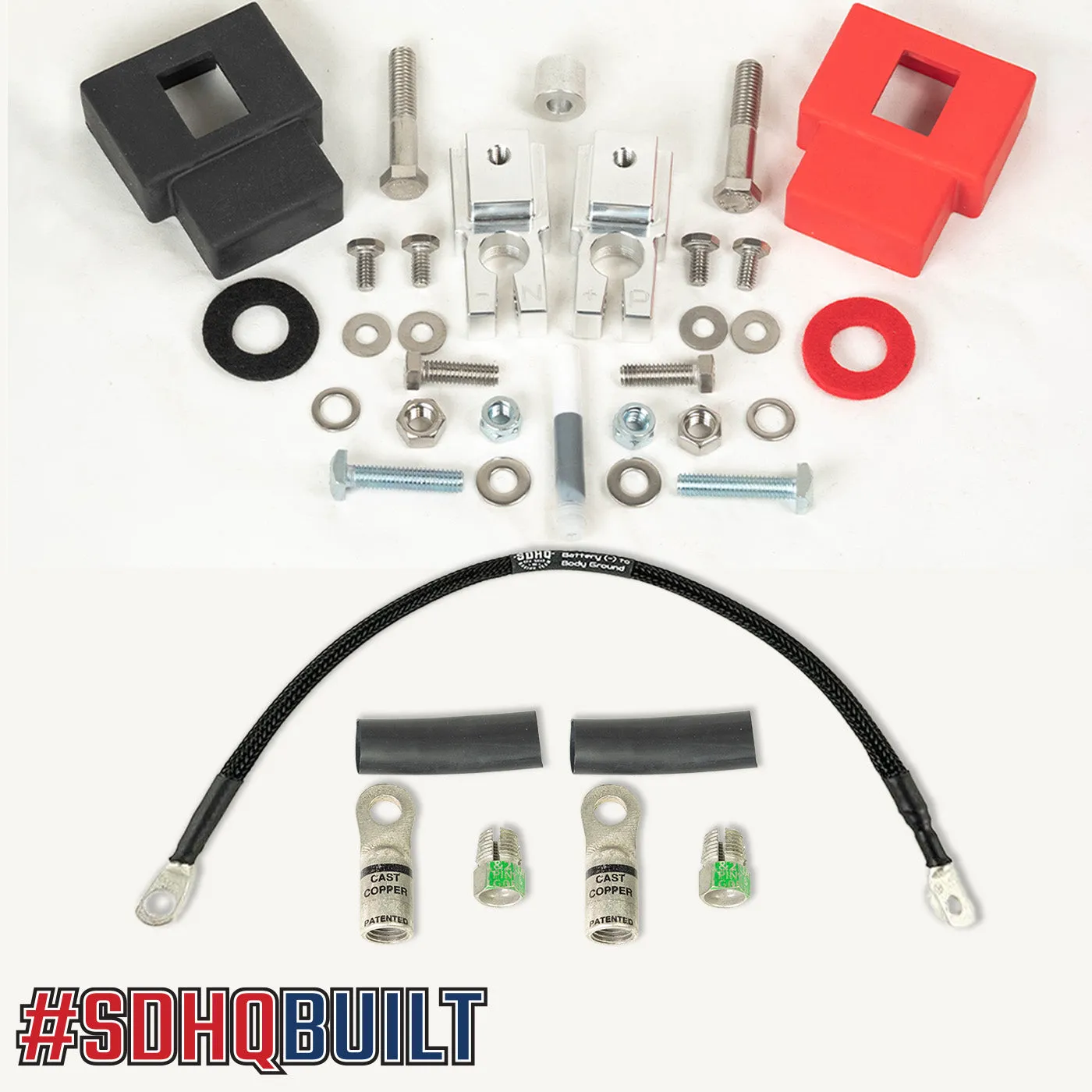

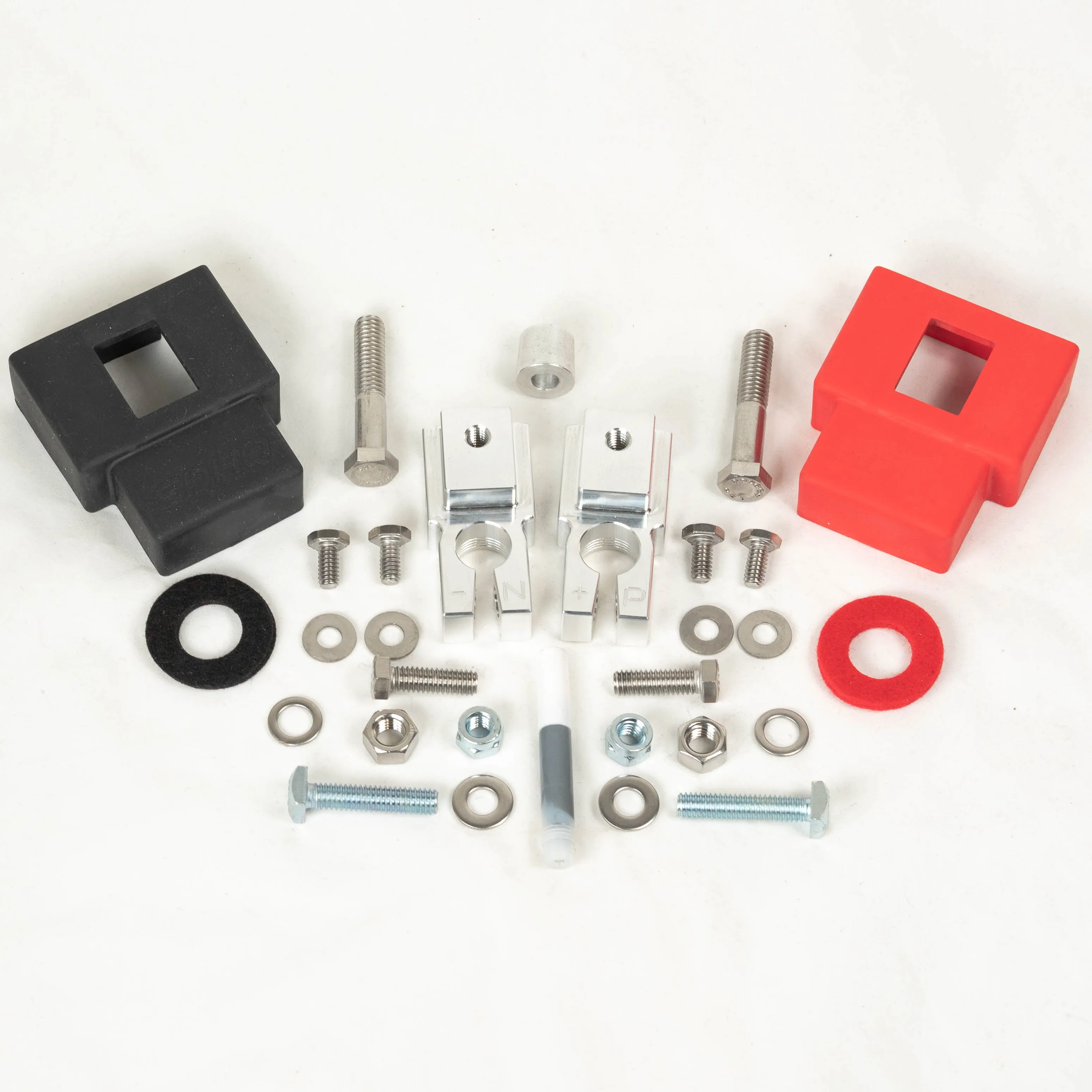

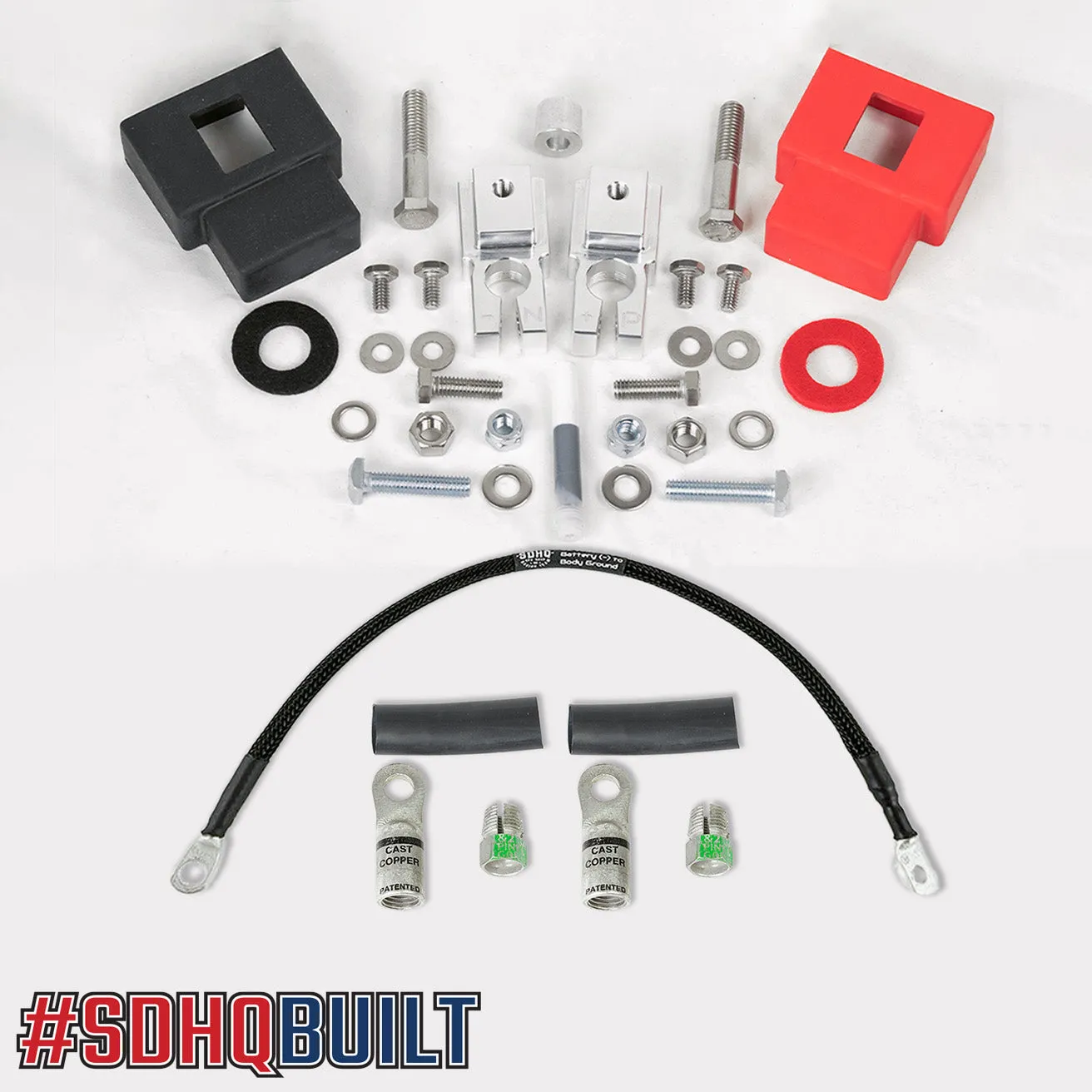

WHAT'S INCLUDED:
- SDHQ Built Complete Billet Battery Terminal Kit - SDHQ-02-3003-C2
- QTY 1. Billet Positive Battery Terminal
- QTY 1. SDHQ Billet Negative Battery Terminal
- QTY 1. SDHQ Negative Terminal Stud
- QTY 1. Hardware Kit
- QTY 1. Protective Positive Boot
- QTY 1. Protective Negative Boot
- QTY 1. Red Post Washer
- QTY 1. Black Post Washer
- QTY 2. 1-2 Gauge Compression Lug Nut Kit

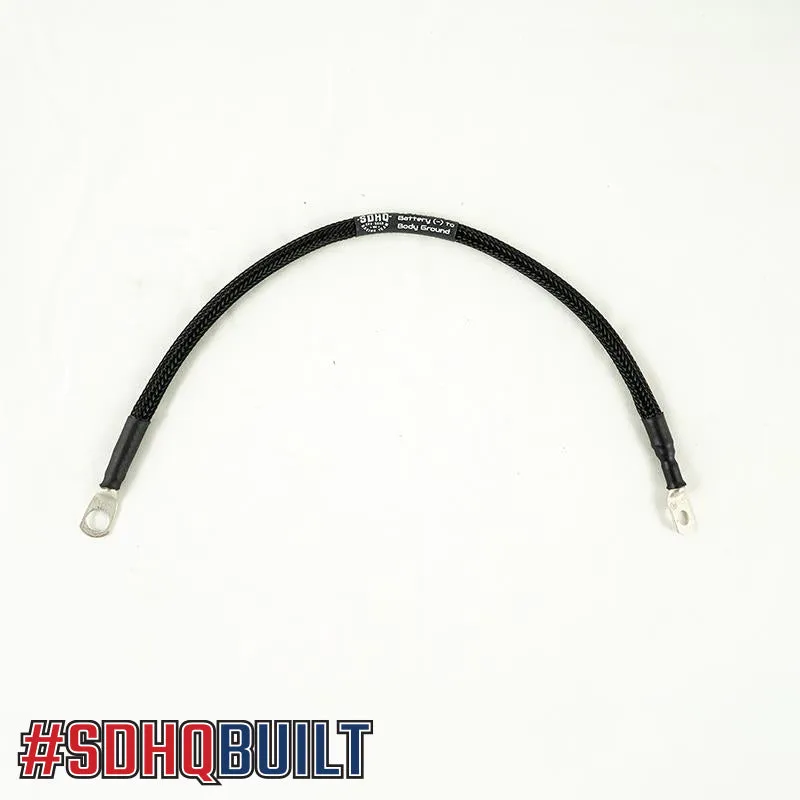

- QTY 1. 6GA Negative Battery to Body 16" Ground Cable
TECH INFO:
- May fit certain 2015-2016 models that do not have Battery Management Sensors built into negative terminal.
- If your vehicle has Ford's battery management sensors then this terminal upgrade kit will not work.
